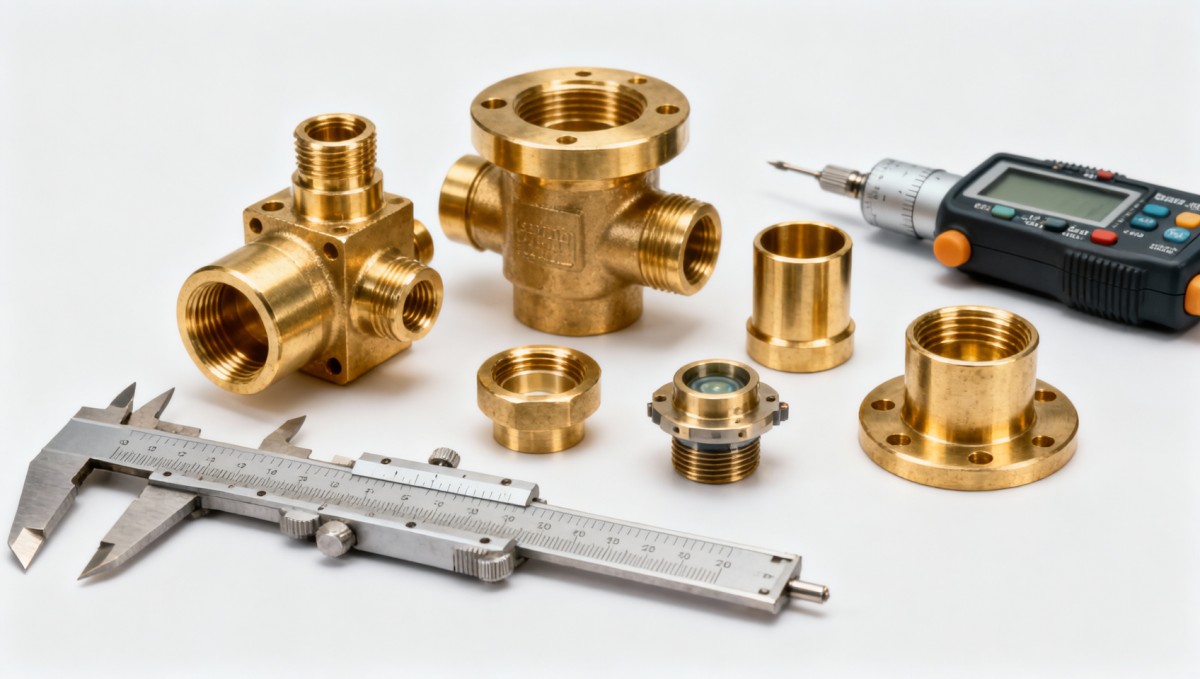

Custom brass CNC parts: which tolerances drive up the quote

When sourcing custom brass CNC parts for renewable energy systems, the quote often hinges on tolerance choices that affect swiss turning concentricity tolerance, cnc spindle runout measurement, micro machining tolerance limits, and precision grinding surface roughness. This guide explains which tolerances truly add cost, where they matter in real-world performance, and how buyers can balance manufacturability, reliability, and budget with data-driven confidence.

Why do some brass CNC tolerances raise the quote so quickly?

In renewable energy hardware, custom brass CNC parts are often used in sensor housings, electrical connectors, valve bodies, threaded inserts, meter components, and small thermal management assemblies. Brass is attractive because it machines well, resists corrosion in many service conditions, and supports stable conductivity. Yet the quote changes sharply when a drawing moves from general machining tolerance to very tight geometric and surface requirements.

The main cost driver is not brass alone. It is the interaction between material behavior, machine capability, inspection method, batch size, and risk of rejection. A diameter tolerance of ±0.05 mm is usually very different from ±0.005 mm, not only in cutting time but also in tool wear control, thermal stabilization, in-process probing, and final measurement. In many workshops, the jump from standard to high-precision work can add extra setup cycles of 1–3 hours before production even starts.

For buyers in solar, energy storage, microgrid control, and smart metering projects, the key question is simple: which tolerances protect system performance, and which ones are over-specified? This matters because an unnecessarily tight callout can inflate unit cost, extend lead time from 7–10 days to 2–4 weeks, and reduce supplier options. For procurement teams, that means more quote variance and less supply chain flexibility.

At NexusHome Intelligence, we approach this issue the same way we examine IoT hardware claims: through measurable engineering reality rather than brochure language. In connected renewable energy systems, hardware failure often appears as signal drift, electrical instability, leakage, poor fit, or sealing inconsistency. A tolerance should be justified by measurable function, not by habit copied from an older drawing.

The four tolerance categories that most often affect price

• Dimensional tolerance: tight limits on diameters, thicknesses, slot widths, and thread-related features often increase tool compensation frequency and inspection time.
• Geometric tolerance: concentricity, position, perpendicularity, and total runout can force secondary operations or slower cycle parameters.
• Surface finish: lower roughness values such as Ra 0.8 µm instead of Ra 3.2 µm may require fine tools, polishing, reaming, or grinding.
• Process capability evidence: some buyers need first article reports, CPK-oriented controls, or 100% critical-dimension inspection, which adds labor and documentation cost.

If a part serves as an electrical interface in a solar combiner box or battery energy storage controller, one or two critical features may justify tighter controls. But applying the same requirement to every non-functional face is where the quote escalates without creating equal value. A smart RF or power monitoring enclosure may need stable mating geometry, while outer cosmetic flats can remain at standard machining tolerance.

Which specific tolerances are expensive, and when do they really matter?

Not every precision note carries the same manufacturing burden. In practice, the biggest quote increases come from features that are hard to hold repeatedly across a batch of 50, 500, or 5,000 pieces. Renewable energy buyers should distinguish between tolerance importance for fit, for sealing, for conductivity, and for rotational accuracy. That distinction helps avoid paying precision premiums where the application does not need them.

Swiss turning concentricity tolerance is a common example. In compact connector pins, coaxial sleeves, and valve-related brass shafts used in fluid or gas sampling subsystems, poor concentricity can cause uneven wear, misalignment, or unstable insertion force. However, asking for an extremely tight concentricity requirement on a short non-rotating spacer may create unnecessary cost. Many designs function well with practical rather than extreme limits.

CNC spindle runout measurement also becomes critical when the feature is sensitive to rotational error. If a part includes a precision bore for a sensor sleeve or an interface that must mate repeatedly under vibration, spindle condition directly affects dimensional repeatability. Suppliers that can document machine health, compensation practice, and inspection frequency usually produce more stable results, but that quality discipline is reflected in the quote.

Micro machining tolerance limits are another major factor for small brass parts used in distributed power electronics, smart relays, or low-current metering nodes. Once wall thicknesses become very thin or internal channels become very small, machining time increases and scrap risk rises. A design that looks compact on the drawing can become expensive when the allowed tolerance band is narrower than normal process capability for the selected feature size.

Typical tolerance areas that increase cost

The table below summarizes where the quote usually climbs for custom brass CNC parts in renewable energy assemblies. These ranges are practical reference points rather than fixed promises, because actual capability depends on feature geometry, machine platform, batch size, and inspection method.

A useful procurement rule is this: if the feature affects sealing, electrical contact stability, rotational alignment, or sensor calibration, tighter control may be justified. If it affects none of those, ask whether a wider band would still meet function. That single review can reduce quote pressure without weakening field reliability.

Where precision grinding surface roughness is justified

Precision grinding surface roughness usually becomes worth the added cost when a brass part is used as a sealing land, a precision bearing seat for a hybrid assembly, or a contact interface where repeatable mating matters. In renewable energy controls, this can apply to gas analysis fittings, compact pump components, and selected power distribution interfaces. It is less justified on hidden faces that do not influence electrical or mechanical performance.

For operators and maintenance teams, the practical outcome is straightforward. Better roughness where it matters can reduce leakage, reduce friction variation, or improve repeat assembly behavior over service intervals of 6–12 months. But specifying a very fine finish everywhere usually adds cost faster than it adds functional benefit.

How should renewable energy buyers evaluate brass CNC quotes?

A good quote review should go beyond piece price. Procurement teams in renewable energy often compare 3–5 suppliers, but the lowest number on the spreadsheet may hide differences in process route, inspection depth, material traceability, and lead-time realism. For custom brass CNC parts, the most useful evaluation method is to separate critical-to-function dimensions from general machining dimensions and ask the supplier how each one will be controlled.

This is especially important for smart energy devices where brass parts interact with PCBA assemblies, sensor modules, relay blocks, and enclosure interfaces. NHI’s broader benchmarking mindset applies here: claims should be tied to measurable capability. If a supplier says they can hold a tight concentricity limit or verify cnc spindle runout measurement discipline, ask what instrument, frequency, and reporting format they use. Real capability is visible in process detail.

For enterprise decision-makers, another major consideration is total program risk. A part that is technically possible but difficult to repeat may pass sample approval and still create instability during scaled procurement. In projects tied to inverter subsystems, energy management hardware, or distributed monitoring nodes, inconsistency can delay final assembly and affect commissioning schedules by days or even weeks.

The table below can be used as a practical RFQ screening tool. It helps information researchers, engineers, buyers, and management teams align on what to ask before approving a quote or a new supplier.

A strong quote usually shows where the supplier expects risk, not just where they expect revenue. If a vendor cannot explain why one feature needs reaming, why one bore needs tighter control, or why one face needs a low roughness value, the quote may not be engineering-led. That creates uncertainty later in ramp-up.

A 4-step RFQ decision process

1. Mark all critical-to-function dimensions on the drawing, ideally no more than the features that directly affect fit, seal, conductivity, or calibration.
2. Ask the supplier to classify each feature by process method: turned, milled, drilled, reamed, ground, or inspected by gauge or CMM.
3. Compare quote impact by tolerance tier, for example standard, controlled, and high-precision versions of the same part.
4. Review lead time, sample plan, and revision turnaround before choosing the final tolerance package.

How can you reduce cost without weakening reliability?

The best cost reduction strategy is not “looser everywhere.” It is selective precision. In renewable energy applications, custom brass CNC parts often operate in systems that demand long service life, vibration resistance, and stable electrical contact. The goal is to preserve those functions while removing avoidable manufacturing burden. This requires close dialogue between engineering, procurement, and the machining supplier.

One common opportunity is replacing blanket geometric tolerancing with feature-based control. For instance, if only one bore aligns a sensing insert, specify the critical relationship there and relax non-essential outer surfaces. Another opportunity is reviewing whether micro machining tolerance limits are really needed across the full depth of a feature, or only in a shorter functional zone. Small drawing edits often change the quote more than buyers expect.

Surface finish is another area where teams can save money. If a face does not seal, slide, conduct, or affect visible customer perception, a general machined finish may be enough. Requiring precision grinding surface roughness on every contact area is rarely necessary in energy devices. Likewise, if swiss turning concentricity tolerance is relevant only to one mating axis, document that clearly instead of controlling every cylindrical feature at the same high level.

Lead time planning also matters. If a project can accept prototype parts in 10–15 working days and production parts in 3–5 weeks, suppliers have more freedom to optimize tooling and inspection sequencing. Urgent delivery often forces overtime scheduling, fragmented setups, or premium machine allocation, which makes even a reasonable tolerance package more expensive.

Cost-saving moves that usually work

• Use tight tolerances only on 2–6 functional dimensions instead of the entire drawing when possible.
• Allow standard surface finish on hidden, non-sealing, and non-contact faces.
• Consolidate similar parts into one machining family if design variation is minimal across energy product lines.
• Request a manufacturability review before freezing the print, especially for micro features and secondary operations.
• Separate prototype tolerance needs from mass-production tolerance needs if the validation phase allows staged optimization.

Common mistake: using legacy tolerances from another industry

Many brass drawings used in renewable energy sourcing originate from older telecom, automotive, or general industrial templates. Those templates may include tighter geometric or finish requirements than the new application needs. When that happens, the supplier quotes to the print rather than to the function. The result is higher price, longer lead time, and no meaningful field benefit.

A disciplined review can prevent this. Ask whether the tolerance is linked to sealing, insertion, conductivity, torque repeatability, or environmental durability. If the answer is unclear, that requirement should be challenged before PO release.

FAQ for engineers, buyers, and decision-makers

The questions below reflect common search and sourcing issues around custom brass CNC parts for connected renewable energy systems. They are also useful when aligning R&D, procurement, and supplier quality teams before launch.

How do I know whether a tight tolerance is functionally necessary?

Start with four checks: does the feature affect sealing, electrical contact, alignment, or calibration? If it affects none of these, it may not need premium precision. In many projects, only a small set of dimensions drives performance. Everything else can often remain within normal machining capability. A design review with the supplier before sampling can reveal this quickly.

Are custom brass CNC parts suitable for renewable energy electronics and smart infrastructure?

Yes, especially for connectors, terminals, housings, inserts, and precision mechanical interfaces used in metering, storage control, solar balance-of-system devices, and monitoring equipment. The right brass grade and finishing route depend on conductivity, corrosion environment, assembly torque, and whether the part interfaces with sensors or PCBA modules. The design should also consider operating temperature swings and outdoor exposure where relevant.

What should I ask about cnc spindle runout measurement when comparing suppliers?

Ask how often machine condition is checked, what measurement method is used, and whether the supplier correlates spindle condition with critical bore or diameter performance. You do not need every maintenance record, but you do need confidence that the supplier treats runout as a process variable rather than an afterthought. This is particularly important for repeated batch orders over 6–12 months.

What is a realistic lead time for precision brass CNC parts?

For many standard custom parts, prototypes may be possible in roughly 7–15 working days. More complex parts with tight geometric control, surface finish demands, or secondary operations can require 2–4 weeks or more depending on capacity and inspection requirements. Production scheduling should also account for sample approval, possible revision loops, and finish or plating steps if the application needs them.

Why work with a data-driven sourcing partner?

In renewable energy procurement, the challenge is rarely just finding a machine shop. The challenge is finding a supply partner that can translate a drawing into stable production without hiding risk behind generic claims. That is where NexusHome Intelligence adds value. Our perspective comes from benchmarking-driven evaluation across IoT hardware, energy control, and connected device ecosystems, where tolerance, reliability, and real operating conditions matter more than sales language.

We focus on engineering truth: what must be controlled, what can be relaxed, and how those choices affect quote, lead time, and deployment risk. For buyers of custom brass CNC parts, that means better support on tolerance review, supplier communication, manufacturability screening, and alignment between hardware design and field performance. In sectors where energy management, sensing, and smart infrastructure converge, this clarity reduces costly iteration.

If you are evaluating a new brass part for solar, storage, smart metering, or distributed energy control, we can help you review the print before RFQ or compare supplier feedback after quotation. Typical discussion points include 3 areas: parameter confirmation, tolerance rationalization, and production readiness. We can also help frame questions around sample support, inspection expectations, and realistic delivery windows.

Contact us if you need support with custom brass CNC part selection, drawing review, tolerance optimization, sample planning, quote comparison, or certification-related documentation pathways. A focused conversation at the start can save weeks in sourcing time and prevent overpaying for precision that the application does not require.
