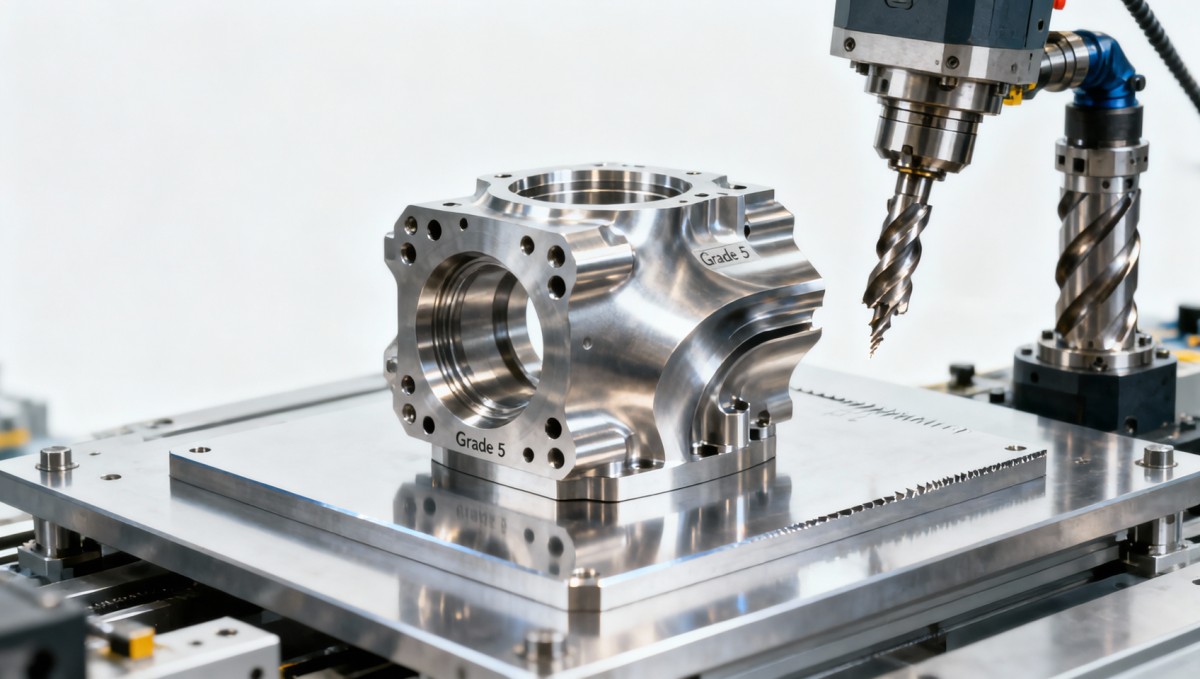

Titanium Grade 5 machinability: where cycle time gets lost

Titanium Grade 5 machinability is where hidden costs quietly erode margins in renewable energy, aerospace, and medical production. From cnc milling chatter frequency analysis and cnc spindle runout measurement to 5 axis cnc surface finish ra and edm surface integrity analysis, cycle time gets lost in places many teams never quantify. This guide shows researchers, operators, buyers, and decision-makers how better data turns machining bottlenecks into measurable gains.

Why cycle time loss matters so much in renewable energy manufacturing

In renewable energy, Titanium Grade 5 is often selected when corrosion resistance, strength-to-weight ratio, and fatigue performance need to coexist. That includes offshore sensor housings, hydrogen system components, thermal management assemblies, fasteners for corrosive environments, and precision parts that sit near power electronics or energy storage infrastructure. The machining challenge is not that the alloy cannot be cut. The challenge is that it punishes weak process control over runs of 20 parts, 200 parts, or full repeat orders across 2–4 production cycles.

For operators, cycle time gets lost in pauses, tool changes, rechecking offsets, and conservative feed reductions. For procurement teams, the loss shows up as unstable quotations, scrap risk, and suppliers who promise one lead time but deliver another. For enterprise decision-makers, the issue becomes larger: delayed turbine subsystem builds, late enclosure integration, and planning gaps that affect downstream installation windows measured in weeks rather than days.

This is exactly where a data-first view matters. NHI’s position is clear: marketing phrases do not solve engineering bottlenecks. Measured spindle runout, documented chatter zones, verified Ra windows, and repeatable tool life baselines create a bridge between shop-floor behavior and procurement confidence. In fragmented hardware supply chains, especially where smart energy systems and connected renewable assets rely on precise mechanical components, verifiable machining data is more useful than broad claims about “advanced capability.”

When teams evaluate Titanium Grade 5 machinability, they should separate visible time from hidden time. Visible time is machine-on cutting. Hidden time includes deburring from built-up edge, additional inspection after thermal distortion, reduced batch confidence, and fixture revisions after part movement. In many shops, that hidden time can exceed the cutting window itself once tolerances tighten below common thresholds such as ±0.05 mm or surface finish requirements move toward low-Ra functional faces.

Where renewable energy teams usually lose time first

The first losses rarely come from a single dramatic failure. They come from stacked micro-inefficiencies that seem harmless in isolation. A spindle with small but unmanaged runout, a toolpath that excites chatter at one wall thickness, or EDM settings that leave a compromised recast layer can all add minutes per part. Across 50–100 parts, those minutes become a schedule problem and a margin problem.

• Thin-wall renewable energy housings often require feed reductions of 10%–25% once vibration appears, even when the original CAM estimate looked acceptable.
• Heat concentration in Titanium Grade 5 can shorten tool life sharply, forcing unscheduled checks every 5–15 parts instead of at planned intervals.
• Post-machining inspection expands when flatness, bore integrity, or sealing-surface Ra becomes critical for energy storage, hydrogen, or outdoor electronics applications.

For a market that values uptime, environmental resistance, and long service intervals, machining variability is not just a workshop issue. It influences field reliability, assembly fit, and replacement cost. That is why Titanium Grade 5 machinability should be assessed as part of the total engineering chain, not as an isolated cutting-speed question.

What actually causes Titanium Grade 5 machinability problems?

Titanium Grade 5, commonly known as Ti-6Al-4V, brings a difficult combination of low thermal conductivity, strong chemical reactivity at the cutting zone, and high strength retention at elevated temperature. That means heat does not evacuate as efficiently as it does in many steels or aluminum alloys. Instead, it stays close to the tool edge and accelerates wear. In practical terms, an operation that looks stable for the first 3–5 parts may become unstable by part 8 or part 12 if tool wear monitoring is weak.

Another source of cycle loss is machine dynamics. Shops often focus on spindle power, but Titanium Grade 5 machinability depends just as much on spindle condition, holder balance, fixture rigidity, and tool overhang. A small increase in runout can push one flute into disproportionate engagement. Then chatter begins, surface finish deteriorates, and the operator compensates by reducing feed or adding a spring pass. The part may still pass inspection, but the cycle time is already lost.

In renewable energy applications, part geometry often adds complexity. Components may combine sealing grooves, thin flanges, deep pockets, cable-routing channels, and threaded features in one setup. This is where 5 axis cnc surface finish Ra targets become hard to maintain consistently. Every repositioning strategy, tool entry angle, and stock condition affects the final result. The more complex the geometry, the more valuable quantified process windows become.

EDM can help on difficult contours or delicate features, but edm surface integrity analysis must be part of the conversation. If a supplier uses EDM to protect geometry yet leaves a heat-affected layer unsuitable for fatigue-sensitive service, cycle time may appear improved while quality risk increases. In energy systems exposed to cyclic loading, outdoor weather, or corrosive media, this tradeoff matters.

A practical breakdown of loss points

Before choosing a supplier or changing a process, teams need a structured view of where time disappears. The table below helps connect machining symptoms to likely operational causes and procurement implications.

The key takeaway is simple: Titanium Grade 5 machinability problems are rarely random. They are traceable. Once traced, they become negotiable in sourcing discussions and improvable in production planning. That is the advantage of treating machining data as a supply-chain decision tool rather than just a workshop record.

Why NHI’s data logic fits this problem

NHI was built around technical verification across fragmented hardware ecosystems. Although many buyers approach renewable energy sourcing through claims and brochures, field reality depends on measurable behavior. The same logic used to benchmark IoT latency, low-power performance, and protocol compliance applies to machined component sourcing: define the metric, test under real conditions, and compare suppliers on evidence instead of slogans.

For Titanium Grade 5 machining, that means asking for measurable indicators such as chatter mapping by operation, spindle runout checks before critical finishing passes, process capability history for repeated features, and documented inspection methods for functional surfaces. It is a discipline that reduces uncertainty for all four audience groups: researchers, operators, buyers, and executives.

How should buyers compare milling, 5-axis machining, and EDM for energy components?

No single method solves every Titanium Grade 5 problem. Conventional CNC milling, 5-axis machining, and EDM each address different geometry, finish, and risk profiles. In renewable energy, the best route depends on whether the component prioritizes fluid sealing, weight reduction, fatigue resistance, compact integration, or corrosion-tolerant external service. Buyers should compare process choices against both part function and total project timing.

For example, a simple bracket or corrosion-resistant mounting element may machine efficiently with stable 3-axis or indexed setups. A compact thermal enclosure with compound angles may justify 5-axis access because fewer setups reduce cumulative error. A fine slot or internal detail near distortion-sensitive features may push the job toward EDM, but only if post-process surface integrity is reviewed. Choosing on hourly machine rate alone often creates the wrong decision.

In procurement, three questions matter most. First, how many setups are needed? Second, what is the likely rework burden? Third, how does the process affect downstream inspection and assembly? A lower quoted machining cost can be erased if the part then requires extra polishing, leak-path verification, or a slower incoming inspection plan across multiple batches.

The comparison below is useful when evaluating suppliers for renewable energy projects with prototype runs, pilot lots, and medium-volume repeat orders.

Notice that the right comparison is not only speed versus cost. It is controllability versus downstream risk. A credible supplier should explain why a process route is chosen, what metrics define success, and where the process window narrows. If that explanation is vague, buyers should expect hidden delays later.

A shortlist for faster supplier screening

• Ask whether cycle time was estimated from CAM only or validated by real cutting on Titanium Grade 5.
• Confirm whether surface finish values are measured on functional zones or only on easy external faces.
• Request a basic explanation of how the shop handles tool wear progression across a batch of 10, 30, or 100 parts.
• If EDM is involved, ask how the supplier evaluates affected surfaces when parts will face cyclic loading or harsh outdoor duty.

These questions do not require proprietary data, but they reveal whether a supplier understands Titanium Grade 5 machinability as an engineering problem or only as a quoting exercise.

What should procurement teams and operators verify before placing an order?

A strong purchasing decision starts before the RFQ is sent. For Titanium Grade 5 parts used in renewable energy systems, technical ambiguity often becomes the biggest hidden cost driver. If the drawing, surface callouts, inspection method, and intended service conditions are unclear, suppliers will either overquote, underquote, or protect themselves with conservative process choices. None of these outcomes helps delivery or margin.

The most effective procurement teams use a 4-step review: feature risk mapping, process-route alignment, inspection definition, and batch-scaling check. Feature risk mapping identifies thin walls, deep pockets, sealing faces, threaded zones, and fatigue-sensitive edges. Process-route alignment checks whether milling, 5-axis, or EDM is suited to those features. Inspection definition clarifies what must be measured and how often. Batch-scaling check asks whether the quoted method still works when the project moves from sample to repeat production.

Operators and manufacturing engineers should be included in this review, not just buyers. They understand where cycle time truly gets lost: at setup transitions, offset drift, unstable finishing passes, and last-minute interventions. Decision-makers should encourage that cross-functional input early, especially when project lead times fall in the common 2–6 week window for machined prototype and pilot orders.

The checklist below can be used in supplier qualification and internal pre-order review. It is especially helpful when comparing multiple quotations that appear similar on paper but differ in risk.

Five checks that reduce hidden cycle time loss

1. Verify critical dimensions and surfaces by function. A sealing groove, mating face, or sensor reference bore deserves more attention than a nonfunctional exterior face.
2. Ask how cnc spindle runout measurement is performed before finishing critical features. Even a small unmanaged error can distort tool engagement and Ra consistency.
3. Review chatter risk on thin or unsupported regions. A supplier should explain how cnc milling chatter frequency analysis informs tooling or toolpath decisions.
4. Clarify whether sample approval and repeat-order control use the same process window. A process stable for 3 parts may fail at 30 parts.
5. Define the acceptable lead-time range, such as 7–15 days for sample production or 2–4 weeks for more complex batches, depending on geometry and inspection scope.

The practical value of this checklist is that it prevents surprises. It also aligns well with NHI’s broader philosophy: engineering truth should be measurable and transferable across the supply chain. When buyers and suppliers share the same decision criteria, lead times become more credible and quality escapes become less likely.

Common mistakes in Titanium Grade 5 sourcing

One common mistake is choosing the lowest quote without understanding whether the cycle time assumes aggressive conditions that may not survive real production. Another is requesting a cosmetic surface finish target without identifying the truly functional zones. A third is ignoring post-process implications when EDM is used to simplify geometry. These mistakes often look minor at RFQ stage, but they become expensive during first-article review or batch release.

A better approach is to ask for a balanced explanation of cost, process stability, and inspection burden. Suppliers who can discuss those three areas clearly are generally easier to work with over repeat renewable energy programs, especially where field reliability and documentation matter.

FAQ: how to make better Titanium Grade 5 machining decisions

The questions below reflect common search intent from engineers, operators, procurement staff, and executives who need clearer judgment criteria on Titanium Grade 5 machinability in renewable energy projects.

How do I know whether cycle time estimates are realistic?

Ask whether the estimate comes from actual Titanium Grade 5 production or from CAM assumptions. A realistic quote should mention setup count, expected tool wear checkpoints, and whether high-risk features need finishing passes or additional inspection. If the supplier cannot explain what happens after part 5, part 10, and part 20, the estimate may not reflect real throughput.

Is 5-axis machining always better for complex renewable energy parts?

Not always. 5-axis machining can reduce setups and improve access, but it also demands stable fixturing, verified machine condition, and disciplined finish control. It is usually most valuable when geometry complexity is high enough to offset programming and setup effort. For simpler parts, a stable conventional route may provide better cost control.

What surface finish questions matter most?

Focus on functional surfaces first. Ask where Ra must be controlled, how it is measured, and whether the value applies before or after any secondary finishing. For 5 axis cnc surface finish Ra discussions, it is also important to ask whether measurements are taken on angled or hard-to-access faces, not just on easy external surfaces.

When should EDM be treated cautiously?

Use caution when the part will experience fatigue loading, sealing demands, or harsh environmental cycling. EDM can solve geometry problems, but edm surface integrity analysis should be part of approval. If the application includes cyclic stress or long outdoor exposure, ask how the affected surface is evaluated and what post-process steps are used.
