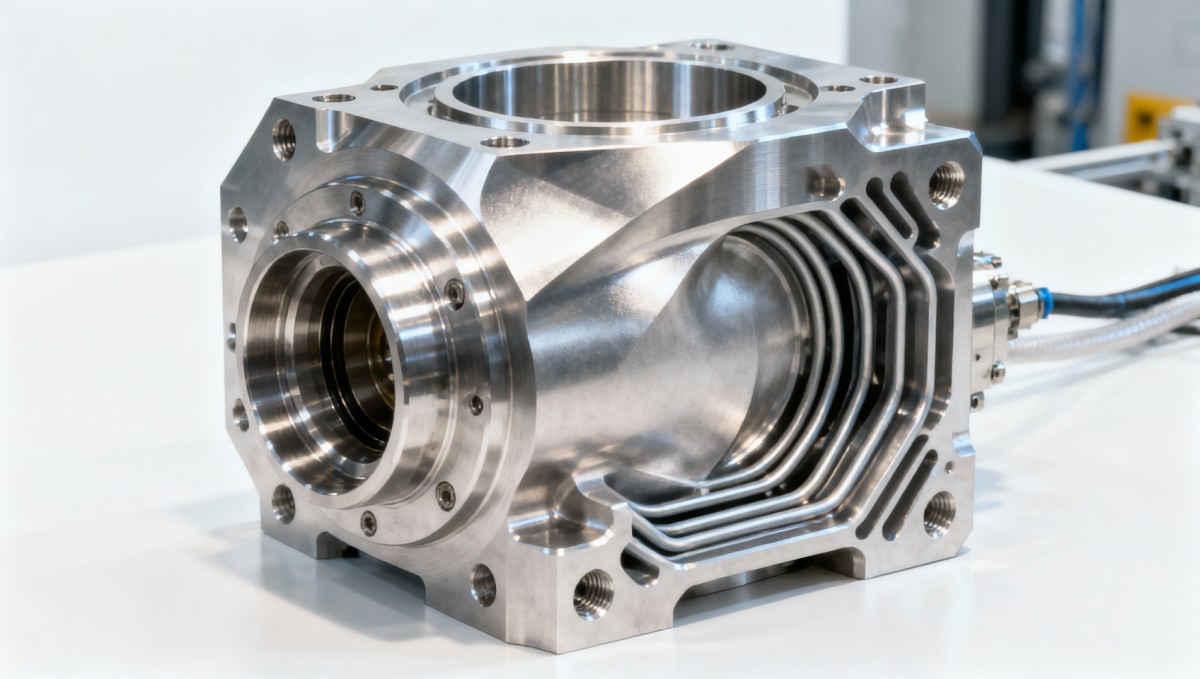

5 axis CNC surface finish Ra: what affects the final number

In renewable-energy hardware, the final 5 axis CNC surface finish Ra can decide sealing efficiency, fatigue resistance, and long-term reliability. This guide explains what drives the number—from cnc spindle runout measurement and cnc milling chatter frequency analysis to precision grinding surface roughness, titanium grade 5 machinability, and Inconel 718 tool wear rate—helping engineers, buyers, and decision-makers judge machining quality with data instead of marketing claims.

Why does 5 axis CNC surface finish Ra matter so much in renewable-energy hardware?

In wind, solar, energy storage, hydrogen, and smart-grid equipment, surface finish is rarely just a cosmetic requirement. A lower and more consistent 5 axis CNC surface finish Ra can affect gasket compression, bearing fit, coating adhesion, fluid flow, and crack initiation. On parts such as inverter heat sinks, battery enclosure sealing faces, pump manifolds, turbine subcomponents, and sensor housings, the final number often influences whether field performance remains stable over 2–5 years of service.

That is why engineers should not read Ra as an isolated drawing note. A callout such as Ra 0.8 μm, 1.6 μm, or 3.2 μm reflects a full process chain: machine geometry, tool condition, toolpath strategy, material behavior, coolant control, clamping stability, and post-processing. In renewable-energy deployments exposed to dust, salt spray, vibration, thermal cycling, and humidity, small differences in surface integrity can become expensive warranty events.

For information researchers, the key issue is interpretation. For operators, the problem is process control over long runs. For procurement teams, the risk is accepting attractive quotations without proof of process capability. For decision-makers, the concern is lifecycle cost: a cheaper machined part can create higher inspection fallout, assembly rework, or premature leakage in the field. In short, the final Ra number is a business variable, not only a machining metric.

NexusHome Intelligence approaches this topic the same way we evaluate other hardware bottlenecks across connected infrastructure: by separating claims from measurable evidence. In fragmented global supply chains, brochures may promise “precision machining,” yet real qualification depends on runout records, tool wear tracking, vibration behavior, and metrology discipline. The renewable-energy sector needs that evidence-based filter because uptime and safety are more valuable than polished marketing language.

Typical renewable-energy parts where Ra directly affects function

• Battery energy storage enclosure interfaces, where sealing faces often need controlled flatness and repeatable Ra to maintain ingress protection over repeated service cycles.
• Cooling plates and thermal management manifolds, where roughness can influence contact resistance, gasket behavior, and internal flow performance.
• Wind-power drivetrain and sensor mounting parts, where micro-notches and chatter marks may accelerate fatigue under cyclic loading.
• Hydrogen and fluid-control components, where machined sealing lands may need tighter process control than visually acceptable surfaces suggest.

How buyers can read the requirement more accurately

A practical review starts with 3 questions. First, is the Ra requirement tied to sealing, sliding, coating, or appearance? Second, is the surface produced directly by 5 axis milling, by precision grinding, or by a mixed route? Third, how is compliance verified: contact profilometer, optical system, cutoff length selection, and sampling frequency? Without these details, two suppliers may both report the same nominal Ra while delivering very different real-world performance.

For many B2B projects, a realistic qualification window includes first article review, process capability confirmation, and pilot-lot validation across 10–50 parts rather than one showcase sample. This matters when sourcing parts for distributed renewable-energy equipment, because variation between shifts, machine platforms, or tool batches can move the final number even when the CAD model never changes.

What actually affects the final Ra number on a 5 axis machined part?

The final 5 axis CNC surface finish Ra is the result of interacting variables, not a single machine setting. In practice, the most influential factors usually fall into 5 groups: machine condition, tool condition, cutting parameters, material machinability, and post-machining finishing. When a supplier misses the target, the root cause often sits in the interaction between these groups rather than in one obvious failure.

Machine condition starts with cnc spindle runout measurement. Even a high-end machine cannot deliver a stable finish if spindle taper cleanliness, holder balance, thermal growth, or bearing condition are not under control. Small runout differences can increase uneven tooth loading, shorten tool life, and amplify chatter marks. On thin-wall aluminum or stainless components used in energy control cabinets and housings, that effect can be visible within a single production shift.

Process stability also depends on cnc milling chatter frequency analysis. Chatter is not just an acoustic annoyance; it imprints waviness and irregular peaks that raise roughness and hurt consistency. In 5 axis work, changing tool orientation can alter effective cutter engagement and dynamic stiffness. A toolpath that looks efficient in CAM may still excite vibration at certain spindle-speed bands, especially on long-reach tools, deep pockets, or complex contoured surfaces.

Material behavior is another major driver. Titanium grade 5 machinability differs sharply from aluminum alloys, and Inconel 718 tool wear rate is typically more punishing than standard steels. In renewable-energy systems, these materials may appear in corrosion-resistant fittings, high-temperature parts, or structurally demanding brackets. The same nominal feed strategy rarely works across them. Heat generation, work hardening, built-up edge, and chip evacuation all influence the final Ra value.

Core factors that move surface roughness up or down

The table below gives a procurement-friendly view of what typically affects the final number, what to ask for, and why it matters in renewable-energy applications where reliability, sealing, and thermal behavior are sensitive to machining quality.

A useful takeaway is that Ra should be linked to process evidence. If a supplier only shares the drawing requirement but cannot explain runout control, chatter mitigation, or wear management over a 20-part to 100-part lot, the quoted finish level may not be repeatable. That gap is especially important when renewable-energy projects scale from prototype to field deployment.

Where precision grinding surface roughness enters the discussion

Some surfaces specified at Ra 0.4–0.8 μm are possible by fine milling under favorable conditions, but many critical faces are more reliably achieved by secondary finishing. Precision grinding surface roughness often delivers tighter consistency on sealing lands, datum faces, and certain bearing-related features. Buyers should therefore ask whether the quoted Ra is expected from direct 5 axis milling or from a combined route that includes grinding, lapping, or polishing.

This distinction changes both cost and lead time. A direct-machined surface may support faster throughput for medium-volume programs, while a ground surface can improve capability for high-risk interfaces. The correct choice depends on part function, inspection burden, and acceptable scrap rate. In data-driven sourcing, the objective is not the cheapest single operation but the lowest total manufacturing risk.

A short diagnostic checklist for engineers and operators

• Check whether spindle runout is recorded at planned tool extension, not only at the spindle nose.
• Review chatter-prone speed ranges before locking the 5 axis finishing strategy.
• Separate prototype parameters from production parameters if the lot size increases from 5 parts to 200 parts.
• Confirm whether measurement reports state the sampling method, direction, and cutoff conditions.

How do different materials and energy-use scenarios change the achievable finish?

The same nominal surface finish target can be easy on one alloy and difficult on another. For renewable-energy hardware, common material choices include aluminum for heat sinks and enclosures, stainless steel for corrosion resistance, titanium for weight-sensitive or aggressive environments, and nickel-based alloys for demanding thermal conditions. Each material changes tool wear, vibration behavior, chip control, and post-process needs.

Titanium grade 5 machinability is a classic example. It offers excellent strength-to-weight ratio and corrosion resistance, but low thermal conductivity can keep heat at the cutting edge. That increases the risk of smearing or accelerated tool wear if parameters are too aggressive. In energy equipment exposed to marine or chemically harsh conditions, titanium may be justified, but buyers should expect stricter process control and potentially slower finishing passes.

Inconel 718 tool wear rate pushes the challenge further. This alloy is valuable where heat and corrosion resistance matter, yet it is widely recognized as a difficult-to-machine material. Surface finish may degrade quickly if the tool is kept in service beyond its stable wear window. For procurement teams, that means unit price comparisons must include expected insert life, inspection frequency, and the chance that late-tool-life parts show roughness drift.

On the other hand, aluminum alloys often permit lower Ra with shorter cycle times, but they bring their own risks: built-up edge, burr control, and cosmetic mark sensitivity. In inverter housings, thermal plates, and control-system brackets, the best process may not be the most aggressive one. A smoother finish with better repeatability can reduce assembly issues and improve thermal interface consistency over large production runs.

Material comparison for sourcing and process planning

The table below does not claim fixed universal values. Instead, it summarizes common sourcing logic for renewable-energy parts, showing where roughness risk typically increases and why process verification matters.

For sourcing teams, the practical lesson is simple: ask whether the quoted price assumes one stable tool set, multiple tool changes, or secondary finishing. That detail can alter lead time by several days and change scrap exposure significantly. In renewable-energy projects with strict delivery windows, such hidden assumptions often matter more than a small difference in unit price.

Application scenarios where finish control becomes more critical

• Outdoor battery enclosures operating across seasonal temperature swings, where sealing faces and coating interfaces are under repeated expansion and contraction.
• Liquid-cooled power electronics, where manifold surfaces and contact faces influence leak risk and thermal consistency.
• Wind and marine-adjacent equipment, where salt exposure makes material choice and post-machining surface integrity more sensitive.
• Hydrogen-related hardware, where critical sealing surfaces typically justify tighter validation and process documentation.

What should procurement teams, operators, and decision-makers check before approving a supplier?

A strong sourcing decision requires more than a drawing review. For 5 axis CNC surface finish Ra, the key is proving repeatability from prototype through production. A supplier may achieve an attractive first sample but struggle after 20 parts, after a weekend shutdown, or when shifting from aluminum to titanium. Qualification should therefore evaluate process capability, measurement discipline, and communication quality together.

For operators and manufacturing engineers, it helps to define 4 review layers: machine readiness, tooling readiness, parameter control, and inspection readiness. Each layer should have clear evidence. For example, machine readiness includes spindle condition and thermal stabilization. Tooling readiness includes holder selection and replacement rules. Parameter control includes approved speed and feed windows. Inspection readiness includes the roughness instrument, orientation, and sampling frequency.

For procurement teams, a useful commercial rule is to compare suppliers on total risk over a 3-stage path: prototype, pilot lot, and repeat order. This prevents the common mistake of awarding business on a single low quote without asking whether the supplier can keep Ra stable across 2–4 weeks of production or under material lot variation. In renewable-energy hardware, that mistake can delay assembly and field deployment.

For enterprise decision-makers, surface finish control should be viewed as part of supplier governance. If your equipment must perform in smart grids, distributed storage systems, or commercial energy infrastructure, hidden machining variation can undermine both product reliability and brand credibility. Data-backed qualification is therefore not an engineering luxury. It is a supply-chain control method.

A practical supplier evaluation checklist

1. Request process evidence for critical surfaces, including how Ra is produced and whether grinding or polishing is included.
2. Ask for cnc spindle runout measurement records or control routines, especially for long-reach finishing tools.
3. Confirm whether cnc milling chatter frequency analysis or equivalent vibration control is used on difficult geometries.
4. Review the material-specific plan for titanium grade 5 machinability or Inconel 718 tool wear rate if these alloys are involved.
5. Define acceptance on pilot-lot quantity, not only on one demonstration sample.

Common misconceptions that increase sourcing risk

“A lower quoted Ra always means a better supplier.”

Not necessarily. A lower target may be achieved by adding secondary finishing, increasing cycle time, or reducing tool life. If these tradeoffs are not disclosed, cost and lead time can shift later. The better supplier is usually the one that explains the route clearly and shows stable results across repeat batches.

“If the surface looks smooth, the requirement is met.”

Visual appearance can be misleading. A surface may look bright and still carry waviness, torn material, or directional marks that matter in sealing or fatigue-sensitive applications. For energy equipment expected to run for years outdoors, measurement and function testing remain more reliable than appearance.

“Prototype success guarantees production success.”

This is a frequent trap. Prototype parts may be made with fresh tools, slower cycle times, or added manual finishing. Production introduces tool wear, shift changes, and throughput pressure. A repeatable Ra target must survive those realities.

FAQ and next-step guidance for renewable-energy machining projects

The questions below reflect common search intent from engineering teams, equipment users, sourcing managers, and business leaders who need to connect machining quality with renewable-energy product reliability.

How should we specify 5 axis CNC surface finish Ra on a drawing?

Start by defining only the critical surfaces rather than applying a tight value everywhere. Then add the functional reason where relevant: sealing, sliding, thermal contact, coating, or appearance. If directionality matters, state the measurement orientation. If the target is below what direct milling usually delivers reliably, clarify whether precision grinding surface roughness or another secondary method is acceptable. This prevents quote ambiguity and rework later.

What lead-time impact should buyers expect when a tighter Ra is required?

Lead-time impact depends on material, lot size, and whether post-processing is added. In many projects, a tighter finish can introduce extra inspection steps, shorter tool-change intervals, or a secondary operation. That may add several days on a prototype order or become a throughput constraint in batch production. The key is to ask whether the quoted schedule already includes these controls rather than assuming the finish target is “free.”

Which documents are most useful during supplier comparison?

The most useful package usually includes a first article report, roughness measurement records for critical faces, process notes on tooling and finishing route, and a clear statement of any secondary operations. If difficult materials are involved, material-specific notes on titanium grade 5 machinability or Inconel 718 tool wear rate are valuable because they reveal whether the supplier understands practical production risk.

Why do we connect machining discussion with the NHI data-driven approach?

Because renewable-energy and connected infrastructure now share the same supply-chain problem: too many claims, too little verifiable engineering evidence. NHI was built around the idea that hardware trust should come from measurable performance, not slogans. Whether the topic is IoT protocol behavior, standby power, or machining quality, the same principle applies: benchmark reality, verify under use conditions, and reduce sourcing decisions to evidence that engineering and procurement teams can act on.
