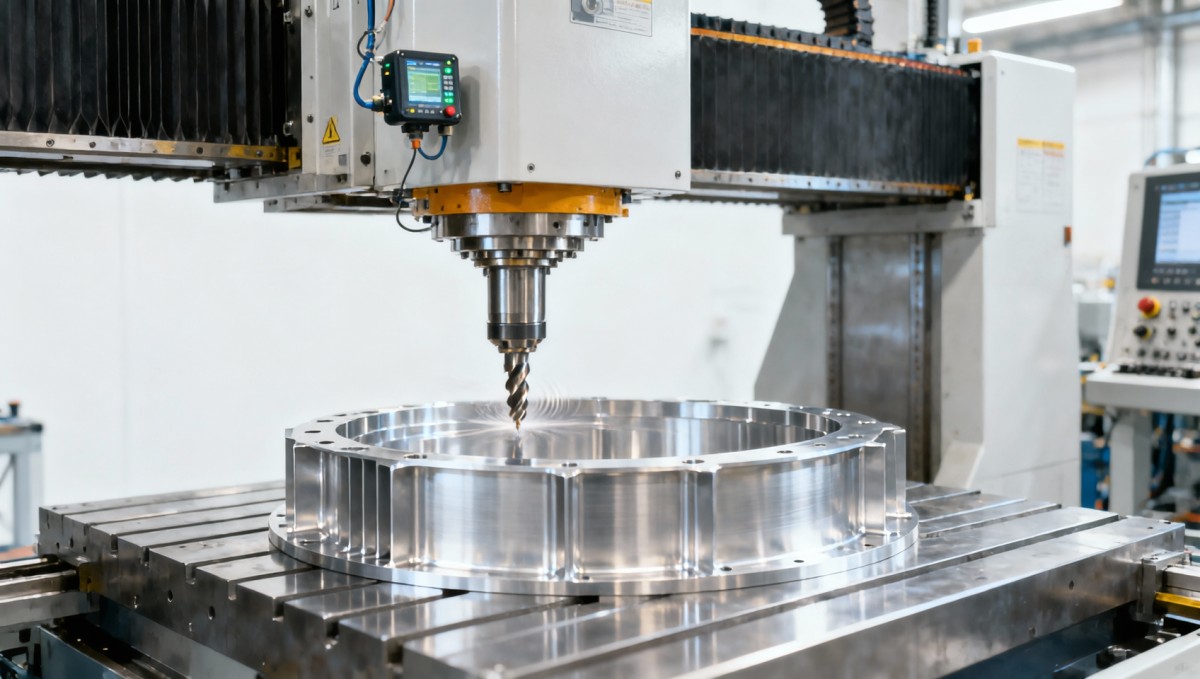

CNC milling chatter frequency analysis for unstable thin walls

In renewable energy manufacturing, CNC milling chatter frequency analysis is crucial when machining unstable thin walls used in lightweight housings, turbine components, and precision assemblies. For engineers, buyers, and decision-makers comparing medical machining for orthopedic implants, 5 axis CNC for aerospace impellers, precision grinding surface roughness, and IoT gateway for CNC machine monitoring, understanding vibration behavior is the key to higher accuracy, longer tool life, and more reliable production data.

Why chatter frequency analysis matters more in renewable energy thin-wall machining

Thin-wall parts in renewable energy systems are designed to save weight, improve thermal performance, and support compact assemblies. In practice, these benefits create a machining challenge. When wall thickness drops into common ranges such as 0.5 mm to 3 mm, stiffness falls quickly, and the milling system becomes more vulnerable to self-excited vibration. That is why CNC milling chatter frequency analysis is not an academic extra. It is a production control tool.

Typical renewable energy components affected by chatter include inverter housings, battery tray structures, lightweight brackets for solar tracking systems, thin covers for energy management modules, and aerodynamic aluminum features in small wind subsystems. In these parts, chatter can increase surface waviness, distort dimensional accuracy, and trigger local wall deformation. In a supplier review, these issues often appear as unstable scrap rates from batch to batch rather than one obvious defect.

For operators, chatter shows up as a clear sound signature and visible tool marks. For procurement teams, it appears as hidden cost: extra deburring, lower tool life, delayed delivery, and uncertain process capability. For enterprise decision-makers, the bigger risk is inconsistent data. If machine vibration is not measured and correlated with spindle speed, tool engagement, and wall stiffness, production dashboards may look clean while process stability is actually deteriorating.

This is where the NHI mindset becomes relevant. In fragmented industrial ecosystems, claims such as stable machining, smart monitoring, or connected CNC visibility are not enough. Renewable energy factories need verifiable signals: vibration bands, frequency peaks, latency in machine data collection, and repeatable test conditions. Hard data closes the gap between supplier promises and real operating performance.

What makes unstable thin walls different from standard rigid parts

The problem is dynamic, not only geometric. As material is removed, the natural frequency of the workpiece shifts during the same cycle. A pocketing strategy that is stable in the first 30% of the cut may become unstable in the last 20%. This changing stiffness is one reason thin-wall parts often fail conventional parameter libraries developed for solid blocks or thicker plates.

In renewable energy manufacturing, this matters because many components combine tight flatness, low weight, and high thermal conductivity. Aluminum alloys are common, but thin stainless steel and engineering polymers also appear in sensor housings and control enclosures. Each material changes damping behavior. The result is that chatter frequency analysis must be linked to both machine dynamics and part-specific structural response.

• Wall thickness reduction changes local stiffness and can shift resonance bands during one machining cycle.
• Long-reach tools, common in deep pocket features, amplify radial deflection and chatter risk.
• Clamp force that is too high may suppress vibration at first but can deform thin sections before finishing.
• Without machine data logging at millisecond-level intervals, vibration events may be missed in connected factory reports.

How to read chatter behavior: frequency, process signals, and machine-side evidence

Chatter frequency analysis usually starts with three signal groups: spindle-related excitation, structural natural frequency, and tooth passing frequency. In a typical milling setup, engineers compare FFT peaks from accelerometers or spindle sensors against spindle speed bands and cutting harmonics. The goal is to identify whether instability comes from tool-holder-machine dynamics, workpiece flexibility, or a coupling of both. That distinction directly affects corrective action.

For thin-wall renewable energy parts, the most useful monitoring window is often not a single point measurement. It is a staged measurement approach across roughing, semi-finishing, and finishing. A 3-stage method reveals when stiffness loss begins to move the dominant frequency. In many workshops, the stable zone in roughing does not predict the finishing zone, especially when remaining wall stock falls below about 1 mm to 1.5 mm.

A second practical issue is data transport. If the factory uses an IoT gateway for CNC machine monitoring, sampling architecture matters. A dashboard that updates every few seconds is helpful for utilization, but it is not enough for vibration diagnosis. Chatter events may develop over milliseconds. NHI consistently emphasizes that protocol and data integrity matter as much as device connection. A connected system that loses timing accuracy cannot support serious process verification.

For procurement teams evaluating a machining supplier or in-house upgrade path, ask whether the plant can correlate at least four variables: spindle speed, feed per tooth, axial depth of cut, and vibration spectrum. If these signals are isolated in different systems, root-cause analysis becomes slow and subjective. If they are synchronized, unstable zones can be identified faster and parameter windows become more defensible.

Key indicators worth checking before changing cutting parameters

Many teams respond to chatter by lowering speed only. That can work, but it can also move the process into another unstable lobe. A better sequence is to verify the dominant frequency band, inspect tool runout, confirm holder condition, review remaining wall geometry, and then adjust speed and engagement. This order reduces guesswork and protects throughput.

The table below summarizes machine-side indicators that are especially useful when machining thin walls for renewable energy assemblies.

These indicators are valuable because they combine operator observation with measurable evidence. In renewable energy manufacturing, where parts often move from pilot batches to medium-volume production, that combination helps teams avoid overreacting to one noisy shift while still catching early instability before it affects delivery performance.

A practical 4-step review flow

1. Capture baseline vibration and spindle data in a stable reference cut.
2. Repeat during reduced wall thickness stages, especially below 1.5 mm remaining stock.
3. Cross-check tooling condition, holder runout, and clamp strategy before parameter changes.
4. Validate any new recipe across at least 2 to 3 batches, not one successful part.

Which machining and monitoring strategies reduce chatter risk most effectively?

The best strategy usually combines process planning, tooling control, and data visibility. In renewable energy applications, a thin-wall component may be part of a housing that later interfaces with thermal pads, sensors, or power electronics. That means both surface integrity and dimensional repeatability matter. A fast but unstable toolpath can create downstream assembly issues even if cycle time looks attractive on paper.

From a machining standpoint, teams often compare conventional 3-axis passes, 5 axis CNC strategies, and secondary finishing such as precision grinding for tight surface targets. The correct choice depends on geometry, wall accessibility, and tolerance stack-up. For example, continuous 5-axis tool orientation can reduce tool overhang in some complex pockets, but it also raises programming and validation demands. Precision grinding may improve surface roughness, yet it adds cost and may not solve root-cause vibration from earlier milling stages.

From a digital manufacturing standpoint, machine monitoring should not stop at OEE or utilization. If the plant is investing in an IoT gateway for CNC machine monitoring, the gateway should support deterministic time alignment, practical edge filtering, and export-ready datasets for trend review. In line with NHI’s data-first philosophy, connected monitoring is useful only when it can reveal engineering truth, not just generate more dashboards.

Procurement teams should evaluate strategies by three business questions: can the method stabilize scrap rate over 2 to 4 weeks, can it protect tool life over repeated lots, and can it deliver data that supports supplier accountability? These questions link process engineering to supplier performance management, which is critical in global renewable energy supply chains.

Comparison of common approaches for unstable thin walls

The table below compares typical approaches used when chatter frequency analysis identifies instability in thin-wall renewable energy components.

No single approach solves every chatter problem. The right answer usually comes from combining one process-side action with one measurement-side action. For example, a revised finishing engagement paired with synchronized gateway logging can reveal whether improvement is real across several lots, not just during one operator shift.

Common selection criteria for buyers and plant managers

• Whether the supplier can document stability across prototype, pilot, and serial production phases.
• Whether monitoring hardware supports protocol compatibility with existing factory systems.
• Whether process changes reduce total cost per accepted part rather than only nominal cycle time.
• Whether the solution can be rolled out to similar thin-wall parts in 2 to 3 adjacent product families.

What should procurement teams verify before approving a supplier or internal upgrade?

A recurring mistake in CNC sourcing is to evaluate a supplier only by machine list, price, and promised tolerance. For unstable thin walls, that is not enough. Buyers in renewable energy projects should ask how the supplier identifies chatter onset, how process capability changes with wall thickness, and whether digital records can prove stability over time. Without these answers, low unit pricing may hide expensive variability later.

Internal upgrade decisions follow the same logic. If a plant plans to add sensors, smarter gateways, or new tooling systems, the evaluation should include not just hardware cost but implementation effort, operator training, and the expected validation window. A realistic trial often runs 2 to 6 weeks depending on batch size, part family count, and whether baseline vibration data already exists.

NHI’s broader supply-chain view is useful here because many factories struggle with fragmented systems. One vendor provides sensors, another offers a protocol converter, and the machine controller exports data in a different format. Renewable energy manufacturers need a screening framework that focuses on interoperability and proof, not slogans. Bridging ecosystems through data is practical when teams compare interfaces, timing quality, and engineering traceability from the start.

For enterprise decision-makers, the commercial question is simple: can the organization convert vibration analysis into lower risk? That means fewer emergency tool changes, better first-pass yield, more predictable lead time, and stronger supplier accountability. The answer depends on how disciplined the qualification process is.

A practical supplier and upgrade checklist

• Confirm whether the team can separate spindle-related vibration from workpiece-related resonance during thin-wall milling.
• Ask for a documented process window including speed, feed, engagement, and wall-thickness stage.
• Verify how sensor data is captured, timestamped, stored, and reviewed across at least one full batch.
• Check whether fixture strategy and clamp force are adapted for thin sections, not borrowed from rigid-part setups.
• Review whether the solution integrates with existing factory protocols instead of creating a new data silo.

FAQ and common misconceptions

Does lower spindle speed always reduce chatter?

No. Lower speed may reduce one excitation pattern but activate another unstable lobe. The safer approach is to review frequency peaks, tooling condition, and remaining wall thickness before changing speed. In some cases, a higher but better-positioned speed band is more stable than a lower one.

Is chatter analysis only useful for aerospace-grade parts?

Not at all. Renewable energy manufacturing increasingly uses lightweight enclosures, battery-related structures, and precision thermal components that share similar thin-wall behavior. When wall stiffness is low and surface quality affects assembly or heat transfer, chatter analysis becomes commercially relevant, even for medium-volume production.

How much machine connectivity is enough for meaningful monitoring?

For utilization tracking, low-frequency updates may be enough. For chatter diagnosis, teams need synchronized and sufficiently granular time-series data. The exact sampling architecture depends on the machine and sensor stack, but the key principle is that vibration events must be tied to process variables without timing ambiguity.

Can precision grinding replace chatter control in milling?

Precision grinding can improve surface roughness in selected features, but it should not be used to hide unstable milling. If the wall has already been distorted or residual stress has increased due to chatter, a secondary operation may add cost without recovering true dimensional stability.

Why choose a data-driven evaluation partner for machining and connected factory decisions?

When renewable energy manufacturers evaluate CNC milling chatter frequency analysis, they are rarely choosing one isolated tool or one isolated supplier. They are choosing a chain of decisions: machining strategy, sensing method, protocol compatibility, data interpretation, and supplier qualification. Weakness in any one link can turn a promising pilot into an unstable production line.

NexusHome Intelligence approaches this challenge from a benchmarking perspective shaped by real-world ecosystem fragmentation. We focus on measurable interoperability, stress-tested technical claims, and engineering-first evaluation. That matters when a factory needs to connect machine monitoring, edge data capture, and process diagnostics without creating another disconnected silo.

If your team is comparing suppliers, validating a new thin-wall machining route, or planning an IoT gateway deployment for CNC machine monitoring, the most useful next step is a structured technical review. That review can cover 3 core areas: parameter confirmation for unstable wall sections, monitoring architecture and protocol fit, and qualification criteria for delivery consistency over future lots.

Contact us to discuss your wall thickness range, target tolerances, material type, machine platform, expected batch size, and current monitoring setup. We can help you screen evaluation criteria, compare implementation paths, review likely delivery timelines such as pilot validation in 2 to 4 weeks, and identify where custom benchmarking, sample support, or quotation alignment should begin.
