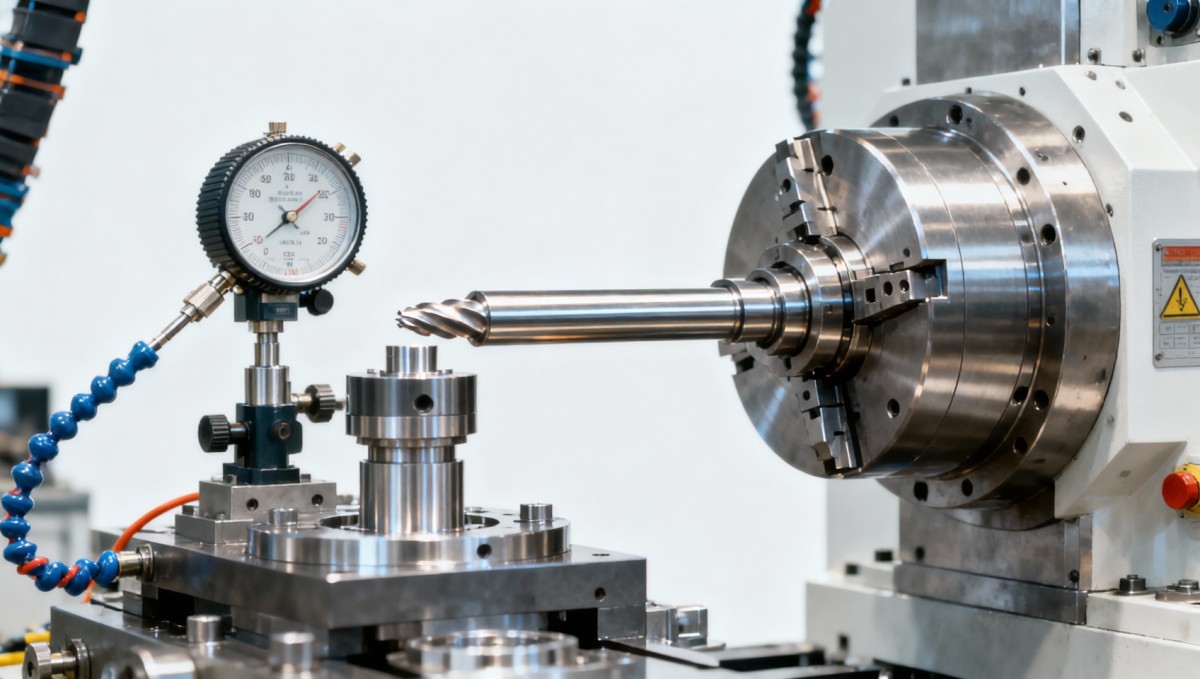

How to check CNC spindle runout before finish machining

Before finish machining high-value components, accurate cnc spindle runout measurement is essential to protect surface quality, dimensional stability, and downstream reliability. For teams in renewable energy, medical, and aerospace production, checking runout helps control precision grinding surface roughness, swiss turning concentricity tolerance, and 5 axis cnc surface finish ra—turning machine health data into smarter manufacturing decisions.

Why spindle runout matters before finish machining in renewable energy production

In renewable energy manufacturing, finish machining often determines whether a component performs reliably in long-duty, vibration-prone, and temperature-variable service. Shaft interfaces for wind systems, inverter cooling plates, sensor housings, bearing seats, and precision bores in energy control assemblies all depend on stable spindle behavior. If cnc spindle runout is not checked before the finishing pass, the result may be poor surface finish, premature tool wear, and avoidable rejection during final inspection.

For operators, runout affects daily machining consistency. For procurement teams, it influences hidden cost through scrap, rework, and shortened spindle life. For decision-makers, it directly connects to production risk, especially when parts support smart energy devices, micro-grid controls, or climate management hardware where dimensional repeatability must stay within a narrow tolerance band such as 0.005 mm to 0.02 mm depending on the feature and process.

This is where NHI’s data-driven mindset becomes relevant. In fragmented supply chains, claims about “high precision” are not enough. A meaningful cnc spindle runout measurement process turns machine condition into verifiable data. That approach aligns with how NHI evaluates hardware: not by brochure language, but by measurable engineering performance under real operating conditions and repeatable inspection steps.

Before finish machining, a practical runout check usually takes 5–15 minutes per machine if the setup is standardized. That short verification window can prevent hours of rework later. In plants producing renewable energy components in small batches, medium-volume lots, or mixed-model production, this check is often one of the lowest-cost controls with one of the highest impacts on finish quality and process stability.

• It protects fine surface targets, including precision grinding surface roughness and 5 axis cnc surface finish ra on visible or sealing-critical areas.
• It reduces concentricity drift in turning centers and helps maintain swiss turning concentricity tolerance on small-diameter parts.
• It gives maintenance, quality, and production teams one shared signal for machine condition before expensive finishing tools are engaged.

What defects often trace back to unchecked spindle runout?

Unchecked runout rarely appears as a single obvious failure. More often, it shows up as circular chatter, taper inconsistency, uneven tool marks, unstable Ra readings, heat concentration at one cutting edge, or accelerated insert breakdown. In finish machining aluminum cooling plates used in energy electronics, for example, runout can increase burr formation and make flatness plus cosmetic appearance harder to control in the same cycle.

On rotational parts, the risk is even more direct. If the spindle, holder, and tool stack-up carries excessive eccentricity, the process can fail concentricity, cylindricity, or bore finish requirements. That matters in renewable energy systems where rotating interfaces or precision fits support reliability over thousands of duty hours rather than just passing a single dimensional audit.

How to check cnc spindle runout step by step before the finishing pass

A useful spindle runout check should be simple enough for operators to repeat, but disciplined enough for engineering review. In most shops, the process uses a calibrated test bar or known-straight pin, a clean tool interface, and a dial test indicator with fine resolution. If the machine supports digital health logging, the results should also be recorded by date, spindle, holder type, and operating shift.

The most important rule is to inspect the whole stack, not just the spindle nose. A machine may show acceptable spindle-only behavior but still produce poor finish because contamination, holder wear, tool clamping variation, or thermal growth increases total indicated runout at the tool tip. For finish machining, measuring at two positions is common: near the taper or holder face, and again 50 mm to 100 mm away at the test bar or tool extension.

A practical 4-step inspection routine

1. Clean the spindle taper, holder, collet, and test bar thoroughly. Even minor debris can create misleading readings larger than the actual machine condition.
2. Mount the holder using the same retention method used in production. Check near the interface first to separate taper issues from tool extension effects.
3. Rotate the spindle manually or in safe jog mode and record total indicated runout at two points. Compare both values to your finishing threshold.
4. If values exceed the internal limit, isolate variables one by one: holder, collet, tool, spindle temperature, pull stud, or bearing condition.

Many plants use internal alarm bands rather than one universal number. As a practical shop-floor approach, a lower threshold is applied to fine finishing tools and a wider threshold to roughing tools. What matters is consistency. If a spindle measures 0.003 mm one week and 0.010 mm the next under the same setup, the trend itself is a warning sign even if a broad tolerance has not yet been crossed.

This procedure becomes more valuable when linked with NHI-style benchmarking logic. The point is not merely to “pass” a quick check. The point is to build comparable machine health data across shifts, suppliers, holders, and production cells. That is especially useful in renewable energy supply chains where multiple sites may machine similar parts but use different spindle platforms, tooling systems, or maintenance routines.

Typical checkpoints before finishing

Before the final pass, many teams review 5 key checkpoints: spindle interface cleanliness, holder condition, pull stud or clamping integrity, cold-versus-warm spindle difference, and actual runout at tool tip. If your finishing cycle is longer than 20–30 minutes or involves heat-sensitive materials, a warm-machine check is often more relevant than a cold-machine reading taken at the beginning of the shift.

What values should buyers and engineers evaluate?

The following table helps translate cnc spindle runout measurement into a procurement and process-control language that operators, quality teams, and managers can all use. The ranges below are common shop-floor reference bands rather than universal acceptance standards. Final limits should always match part geometry, tool length, material, and surface finish requirements.

For procurement, these checkpoints help separate a low-price machine from a stable production asset. A spindle platform that cannot hold repeatable runout through 2 or 3 shifts may look competitive in initial quoting but create hidden costs through finish instability, inspection delays, and higher tooling consumption. This is exactly why data-backed evaluation is more valuable than generic claims about precision.

For engineering teams, the interpretation should stay process-based. A short, rigid tool in aluminum may tolerate a condition that a long, slender finishing tool in stainless steel cannot. Likewise, a component for an outdoor energy control assembly with a visible sealing face may require stricter finish protection than an internal rough-machined support feature. Runout data only becomes useful when tied to part function, not viewed in isolation.

How runout links to surface and concentricity goals

When teams chase better precision grinding surface roughness or tighter swiss turning concentricity tolerance, they often focus first on tooling grade, coolant, feeds, and speeds. Those factors matter, but spindle condition is the upstream control. If the spindle-tool assembly is eccentric, surface finish and circularity targets become unstable no matter how carefully the cutting parameters were selected.

In 5 axis machining, the issue expands further. A poor cnc spindle runout measurement result can combine with angular positioning error, holder projection, and dynamic tool load. That can degrade 5 axis cnc surface finish ra on sculpted or blended features. The practical lesson is simple: do not diagnose finish problems only at the CAM or cutting parameter level until spindle health has been checked first.

How to compare machine condition, tooling stack, and supplier readiness

A common mistake in sourcing is assuming spindle accuracy is a machine specification only. In reality, finish quality depends on the full system: spindle, holder, collet or hydraulic chuck, tool geometry, maintenance discipline, and measurement method. The comparison table below is useful when assessing internal production lines, contract manufacturers, or new equipment suppliers serving renewable energy hardware programs.

This comparison helps buyers avoid oversimplified decisions based only on machine brand or nominal spindle speed. In renewable energy manufacturing, component reliability often depends on process discipline more than headline specs. A supplier that can show a 3-step or 4-step runout verification routine, trend records, and corrective action logic may be a lower operational risk than one offering aggressive pricing but weak measurement transparency.

NHI’s value proposition fits precisely here. Across fragmented hardware ecosystems, the key question is not who markets the loudest, but who can provide standardized, comparable, and engineering-relevant data. Whether the subject is IoT modules, smart energy controls, or the machined components that support them, procurement becomes stronger when technical claims are filtered through measurable evidence.

Procurement checklist for high-value finishing operations

• Request the supplier’s routine for cnc spindle runout measurement before finish machining, including where the indicator is placed and how often checks are done.
• Ask whether finish-critical parts are run on dedicated machines or mixed with roughing-heavy workloads that may accelerate spindle wear.
• Confirm whether the supplier links machine health data with final inspection outcomes such as Ra, roundness, and concentricity trends.
• Review how quickly corrective action can be taken if runout drifts during urgent delivery windows of 7–15 days.

Common mistakes, FAQ, and what decision-makers should do next

The most common mistake is treating runout as a maintenance-only issue. In reality, it is a quality, cost, and delivery issue at the same time. Another mistake is measuring only after defects appear. By then, tools may already be consumed, parts may already be nonconforming, and root cause analysis becomes slower because several variables have changed.

A stronger practice is to define 3 layers of control: pre-shift verification, pre-finish verification for high-value parts, and trend review every week or every batch family. That structure works well for manufacturers supporting renewable energy electronics, sensor assemblies, control hardware, and precision metal parts where reliability requirements are high but production mixes can change quickly.

How often should cnc spindle runout measurement be checked?

For general control, many shops check on a daily or weekly basis depending on utilization. For finish-critical renewable energy parts, checking before the final pass on first-piece setup, after holder changes, or after suspected collisions is a safer approach. If the spindle runs across multiple shifts or high-speed duty cycles, a warm-state verification can provide a more realistic reading than a cold-start check alone.

Can a good machine still produce bad finish if spindle runout seems acceptable?

Yes. Acceptable spindle readings do not automatically guarantee good finish. Tool balance, holder rigidity, workholding, vibration, coolant application, and programmed engagement all matter. However, runout remains one of the fastest screening checks because it identifies whether the spindle-tool system is fundamentally capable of producing the intended finish before deeper process tuning begins.

What should enterprise buyers ask during supplier qualification?

Ask for the supplier’s machine health control plan, finish machining verification points, typical response time for abnormal runout, and whether data is linked to final dimensional and surface inspection. Also ask how they manage mixed production loads, because machines that alternate between heavy roughing and precision finishing may show different stability profiles over a 2–4 week production cycle.

Why choose a data-driven partner for evaluation and sourcing support?

Because technical procurement in renewable energy is no longer just about price or nominal compatibility. It is about verified performance across fragmented supply chains. NHI applies that principle by turning engineering claims into comparable evidence. If you need support with parameter confirmation, product and supplier selection, delivery cycle assessment, certification-related questions, sample evaluation, or quotation communication, a data-first review process helps reduce uncertainty before commitment.

Contact us if you want to compare machining capability for finish-critical parts, review cnc spindle runout measurement expectations for a new supplier, or map quality risks across smart energy and connected hardware programs. We can help structure the discussion around measurable checkpoints, not vague promises: runout control, surface finish targets, tolerance risk, process transparency, sample support, and realistic lead-time planning.
