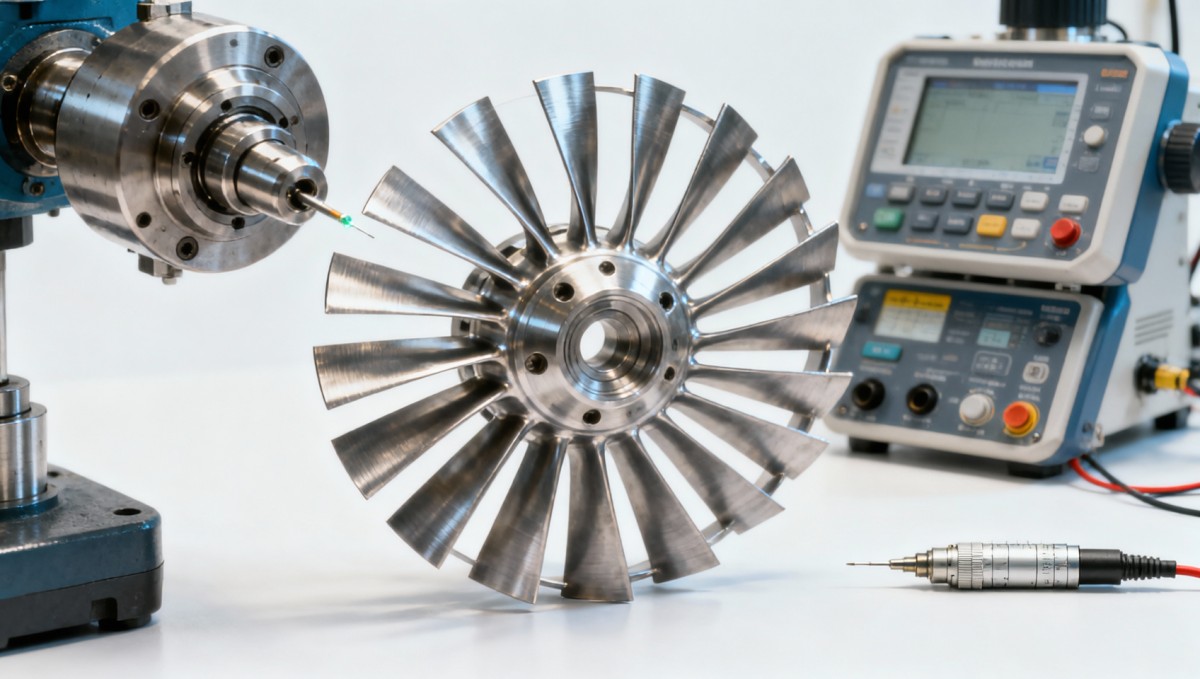

5 axis CNC for aerospace impellers: what causes blade mismatch

In renewable energy and high-reliability manufacturing, 5 axis CNC for aerospace impellers reveals how blade mismatch often starts with tiny errors in cnc spindle runout measurement, 5 axis cnc surface finish ra, and cnc milling chatter frequency analysis. For engineers, buyers, and decision-makers, this guide explains the root causes behind unstable blade geometry, why process data matters more than claims, and how precision control impacts performance, fatigue life, and supply-chain trust.

Why blade mismatch matters in renewable energy rotating parts

Although aerospace impellers are often discussed in aviation, the same 5 axis CNC challenges appear in renewable energy hardware. High-speed compressor wheels, microturbine impellers, hydrogen balance-of-plant components, and precision flow parts for thermal management all depend on tight blade consistency. When one blade differs from the next by even a small geometric amount, the result can be airflow imbalance, vibration growth, lower efficiency, and a shorter service interval.

For operators, blade mismatch is not just a drawing issue. It shows up as unstable cutting sound, changing tool load, and inconsistent surface appearance from one channel to another. For procurement teams, the bigger problem is hidden variation. Two suppliers may quote the same nominal tolerance, but only one may control spindle runout, thermal drift, and fixture repeatability across 8-hour, 16-hour, or 24-hour production windows.

In renewable energy projects, reliability is linked to lifetime economics. A minor mismatch in an impeller or similar rotating part can amplify fatigue under cyclic duty, especially where systems start and stop many times per day. In distributed energy, smart HVAC, heat pumps, and energy recovery systems, repeated operating cycles turn small manufacturing errors into field failures, maintenance costs, and weak supplier confidence.

This is why NexusHome Intelligence (NHI) emphasizes measurable engineering data over brochure language. In fragmented supply chains, claims like “high precision” or “excellent finish” are not enough. Buyers need evidence in 3 areas: geometry stability, process consistency, and verification method. That data-first logic mirrors NHI’s broader approach to connected hardware, where real performance under stress matters more than marketing vocabulary.

What counts as blade mismatch in practical inspection

Blade mismatch usually includes more than one defect type. It may involve profile deviation, unequal blade thickness, leading-edge offset, trailing-edge variation, local waviness, or inconsistent hub-to-tip blend. In 5 axis CNC for aerospace impellers, these issues are often compounded because the part has freeform surfaces, thin sections, and changing tool engagement angles during one continuous toolpath.

• Geometry mismatch: blade-to-blade profile differences, angle deviation, and uneven channel spacing.
• Surface mismatch: one blade shows stable Ra while adjacent blades have torn material or polishing marks.
• Dynamic mismatch: parts pass static inspection but generate vibration during high-speed operation.
• Process mismatch: first 5 pieces are acceptable, while the next 20 drift due to heat, wear, or fixture relaxation.

For most buyers, the useful question is not whether mismatch exists, but where it originates. In many cases, 70% of recurring variation can be traced to a combination of machine behavior, tool condition, setup method, and verification discipline rather than the CAD model alone. That is the foundation for supplier screening and corrective action.

What actually causes blade mismatch in 5 axis CNC machining?

The first root cause is spindle behavior. Poor cnc spindle runout measurement or weak control of spindle growth can shift the actual cutting point by a small but critical amount. On thin blades, that shift may translate into unequal stock removal on opposite sides. When tool diameter is small and reach is long, even micrometer-level runout can change contact pressure, accelerate wear, and produce a visible mismatch by the end of one machining cycle.

The second cause is toolpath and kinematic interaction. In 5 axis CNC for aerospace impellers, machine motion is not a simple 3-axis contour. Rotary axis interpolation, pivot length compensation, acceleration limits, and post-processor settings all influence how the tool reaches the blade surface. If machine dynamics are not tuned for freeform geometry, one blade may be cut with a slightly different tool attitude than the next, especially in steep walls and root regions.

The third cause is chatter and structural vibration. cnc milling chatter frequency analysis matters because blade surfaces are thin, curved, and easy to excite. A chatter band that appears only in one engagement zone can leave periodic waviness or local overcut. Operators often hear this before they measure it. If the process window is too aggressive, the same machine can produce acceptable results in the morning and unstable results after several hours of continuous cutting.

The fourth cause is thermal and fixturing instability. Renewable energy component suppliers often run mixed batches, from prototypes to medium-volume orders. Frequent job changes increase the risk of fixture stack-up error, clamping distortion, and thermal drift after 2–4 hours of spindle use. Thin impeller blades are especially sensitive because clamping force that seems safe for a hub can still distort blade geometry after unclamping.

The four process zones where mismatch usually begins

The practical value for engineers and buyers is knowing where to inspect first. The table below summarizes the most common mismatch sources, what they look like on the part, and which process signal should be reviewed before blaming the material or CAD model.

The key takeaway is that blade mismatch is usually systemic. If a supplier only reworks finished parts without reviewing these four zones, the same problem tends to return in the next batch. A better approach is to request control records, not only final inspection screenshots.

Why surface finish Ra and chatter data should be linked

5 axis cnc surface finish ra is often treated as a cosmetic indicator, but in energy-related rotating parts it is also a process stability signal. A sudden change in Ra from one blade to the next can indicate tool wear, vibration onset, or toolpath discontinuity. When that data is paired with cnc milling chatter frequency analysis, the source becomes easier to isolate. This is especially valuable in new product introduction, where only 10–30 sample pieces may be available before design freeze or supplier nomination.

For NHI-style benchmarking, this matters because a trustworthy supply chain depends on measurable cause-and-effect. Surface finish should not be accepted as a single line on a certificate. It should be interpreted together with machine condition, cutting conditions, and inspection timing. That is how engineering teams separate stable capability from temporary success.

How should buyers evaluate suppliers before ordering impeller machining?

Procurement teams in renewable energy often face a familiar problem: the drawing looks precise, the quote looks competitive, but the risk remains invisible. When sourcing 5 axis CNC for aerospace impellers or similar high-speed parts, price should be only one of 4 decision layers. The other three are process capability, verification transparency, and change-control discipline. Without them, even a low-volume order can become expensive through delay, rework, or field reliability concerns.

A strong supplier should be able to explain how it measures spindle runout, how often it checks tool condition, and how it controls blade-to-blade consistency during long cycles. For buyers, this is more meaningful than generic claims about advanced equipment. A machine brand alone does not guarantee results; the operating method, calibration routine, and inspection workflow decide whether blade mismatch is prevented or discovered too late.

This evaluation model also aligns with the NHI philosophy of bridging ecosystems through data. In a fragmented OEM/ODM landscape, technical integrity is proven by documented process windows, not by polished presentations. For enterprises working across Asia, Europe, and North America, that clarity reduces misunderstanding between engineering, quality, and purchasing teams.

Before placing a production order, ask for evidence across 5 checkpoints: machine capability, fixture concept, tool management, in-process inspection, and final dimensional reporting. If one area is weak, the supplier may still deliver a good sample, but not stable production over 2 lots, 5 lots, or 12 months.

A practical supplier screening table for renewable energy projects

The following table helps buyers compare suppliers using process-based criteria rather than headline promises. It is useful for RFQ review, first article approval, and dual-source qualification.

If a supplier can answer these points clearly, the purchasing conversation becomes more efficient. It also improves internal alignment, because engineering gets technical confidence while management gets a better view of cost risk, delivery stability, and future scaling potential.

Three ordering stages that reduce risk

1. Prototype stage: verify geometry, surface finish, and process stability on a small batch of 3–10 pieces.
2. Pilot stage: confirm repeatability over a longer run, often 20–50 pieces, with traceable inspection intervals.
3. Production stage: lock change-control rules, packaging, documentation, and response time for deviations within agreed lead times such as 2–6 weeks.

This staged approach is especially useful when the same component family may later serve smart energy, climate control, or connected building platforms. In those markets, downtime costs often exceed unit-price savings, so process verification deserves early investment.

What standards, process controls, and implementation steps help prevent mismatch?

No single standard eliminates blade mismatch, but several common industrial practices improve control. These include documented machine calibration, traceable inspection methods, controlled tool life management, and a defined nonconformance workflow. In sectors tied to renewable energy infrastructure, suppliers are often expected to work within broader quality frameworks such as ISO 9001-style management discipline, material traceability, and inspection records that support cross-border purchasing decisions.

For 5 axis CNC for aerospace impellers, implementation should begin before cutting. Teams should confirm 3 data groups: design intent, process route, and verification method. If these are separated across different organizations, errors multiply. This is common when design comes from one engineering center, machining from another region, and final integration into energy equipment happens at a third site.

NHI’s value proposition is relevant here because complex supply chains need a technical filter. In connected energy and smart building ecosystems, small hardware weaknesses can disrupt much larger systems. The same logic applies to precision machining: weak data discipline at one supplier can create hidden risk across procurement, assembly, and field performance.

A practical prevention plan usually includes 4 steps: pre-production review, controlled machining, structured inspection, and feedback closure. When these steps are documented, companies can compare suppliers more objectively and shorten decision cycles for future projects.

Recommended control points before and during production

• Pre-production review: confirm datum strategy, blade stock allocation, tool reach, and expected inspection sections before the first chip is cut.
• Machine preparation: perform spindle warm-up, holder cleaning, and baseline runout verification before long-cycle 5-axis work.
• In-process control: monitor cutting sound, spindle load trend, and checkpoint dimensions at planned intervals such as every 5 pieces or every tool change.
• Post-process verification: compare blade-to-blade profiles, record surface finish Ra by defined locations, and isolate any lot that shows trend drift.

These controls are not excessive overhead. They are cheaper than late-stage scrap, emergency freight, or field replacement. In renewable energy equipment programs where uptime, acoustic behavior, and efficiency matter, the cost of variation is rarely confined to the part itself.

Common misconceptions that delay corrective action

One common misconception is that blade mismatch must come from poor CAD data. In reality, many mismatches begin after programming, during actual machine motion, thermal growth, or tool wear progression. Another misconception is that a visually smooth blade guarantees good geometry. A blade may look polished and still deviate in thickness or angle enough to affect dynamic balance and flow behavior.

A third misconception is that final inspection alone is sufficient. It is not. If mismatch is only discovered at the end, the team has already lost the chance to trace the trigger accurately. Process-linked data, gathered during machining and between batches, is the more reliable path to root-cause control.

FAQ and next steps for engineering, procurement, and decision teams

The questions below reflect common search and purchasing intent around 5 axis CNC for aerospace impellers, especially when the parts support renewable energy, smart climate systems, or other high-reliability hardware programs.

How do I know if blade mismatch is a machine issue or a tooling issue?

Start by comparing where the mismatch appears. If the deviation pattern repeats across multiple parts in the same location, machine kinematics, setup, or fixturing may be involved. If quality gradually worsens over 5–20 parts, tool wear, holder condition, or runout is more likely. The best diagnosis combines profile inspection, spindle load trend, and chatter observation rather than relying on one indicator alone.

What should buyers ask about surface finish Ra?

Ask where Ra is measured, how many points are checked, and whether the values are linked to tool life stage. A single Ra number without location and method has limited value. For blade parts, measurement positions near the leading edge, mid-surface, and root can reveal whether the process is stable or only locally acceptable.

What is a realistic lead time for sample and production orders?

Lead time depends on geometry complexity, material availability, and inspection depth. For many custom precision parts, sample preparation may take 1–3 weeks, while production may require 2–6 weeks after technical confirmation. If a supplier promises unusually short delivery without discussing fixture, tooling, and inspection capacity, buyers should review risk carefully.

Can the same evaluation logic apply beyond aerospace-style impellers?

Yes. The same logic applies to precision rotating parts used in energy recovery, thermal management, high-speed blowers, compressor subassemblies, and other renewable energy-related systems. Any component with thin blades, freeform surfaces, or dynamic balance sensitivity benefits from the same data-driven review of runout, finish, chatter, and traceability.

Why work with a data-driven evaluation partner?

Because technical markets are crowded with broad claims and limited verification. NHI focuses on measurable performance, protocol-level reasoning, and stress-based validation across hardware ecosystems. That mindset helps enterprises compare suppliers with greater confidence, especially when purchasing decisions affect uptime, integration quality, and long-term lifecycle cost in renewable energy and intelligent infrastructure.

Why choose us for technical benchmarking and sourcing clarity?

NexusHome Intelligence is built around one principle: trust should come from verifiable data. For organizations evaluating 5 axis CNC for aerospace impellers or adjacent renewable energy hardware, we help translate supplier claims into engineering questions that can actually be checked. That means fewer assumptions during RFQ, faster alignment between technical and commercial teams, and stronger confidence before scaling supply.

You can contact us for practical support on parameter confirmation, supplier comparison logic, process-risk review, inspection checkpoints, sample evaluation priorities, and documentation expectations for cross-border sourcing. If your project involves smart energy, climate control, connected infrastructure, or mixed hardware ecosystems, we can also help frame the broader reliability context around the component decision.

Useful discussion topics include 5 axis machining feasibility, blade mismatch risk factors, lead-time planning, low-volume versus medium-volume production strategy, certification-related documentation needs, and how to request meaningful evidence instead of generic promises. This is especially valuable when procurement must balance technical precision, commercial pressure, and delivery schedules within one approval cycle.

If you are comparing suppliers now, prepare 6 basic inputs before reaching out: drawing version, material, target quantity, key tolerances, inspection expectations, and delivery window. With that information, the conversation moves quickly from marketing language to technical judgment, which is exactly where high-reliability purchasing decisions should begin.
