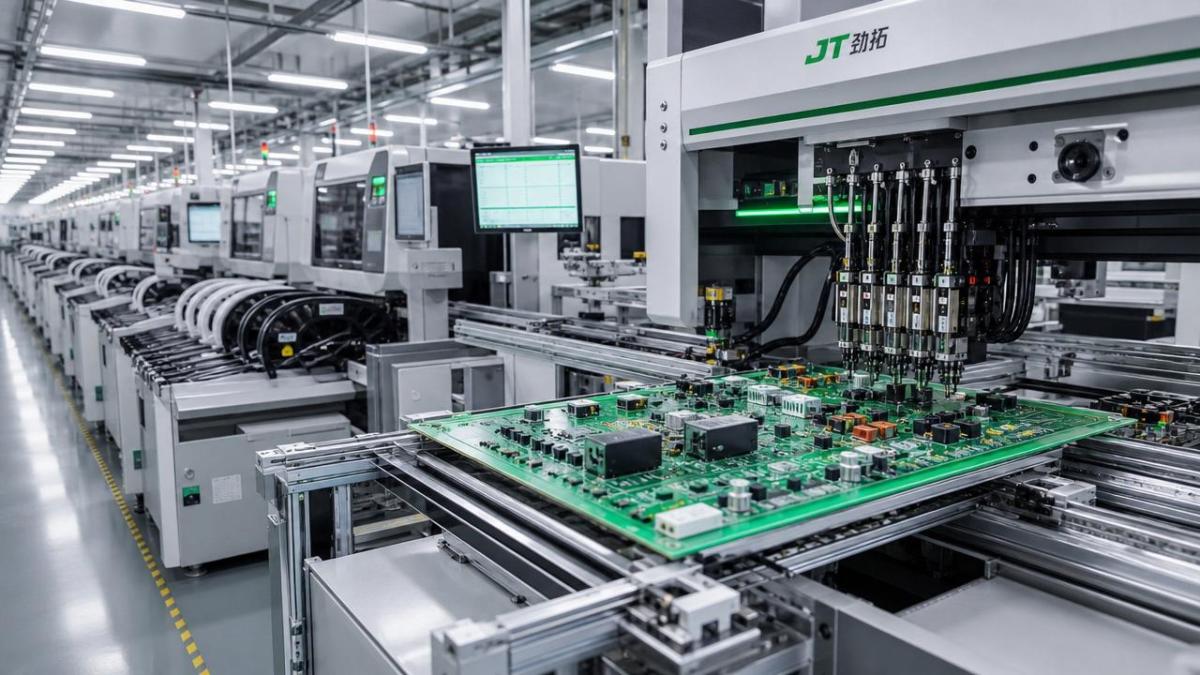

Why pick and place accuracy drops after line expansion

When a production line expands, even small shifts in feeder layout, conveyor timing, and vision calibration can cause noticeable losses in placement consistency. For operators in renewable energy electronics, understanding why this happens is critical to protecting yield, reliability, and throughput. This article explains where accuracy drops begin, what process signals to watch, and how a qualified pick and place robot manufacturer can help stabilize performance after scale-up.

Why line expansion creates different accuracy risks in renewable energy production

In renewable energy electronics, line expansion rarely means adding one machine in isolation. It usually changes the full placement environment: more feeders, longer conveyors, new PCB sizes, different board weights, new operators, revised production recipes, and tighter takt-time pressure. For operators, the important point is not simply that accuracy drops, but that it drops differently depending on the production scenario.

A solar inverter control board line may suffer from board flex and fiducial reading issues after conveyor extension. A battery management system line may see nozzle change frequency increase because of a broader component mix. A smart energy meter line may face higher vision correction drift when throughput rises across multiple shifts. In each case, the root cause appears as “placement error,” but the corrective action is different.

This is why operators should assess expansion by application scenario rather than by machine specification alone. A strong pick and place robot manufacturer should help users connect mechanical accuracy, vision repeatability, feeder stability, and process capability to the exact renewable energy product being built.

Common production scenarios where pick and place accuracy drops after expansion

After scale-up, accuracy loss usually appears first in a few recurring operating situations. Knowing which scenario matches your line helps operators react faster and avoid blaming the wrong subsystem.

Scenario 1: Expanding a solar PCB line with more feeder banks

Solar microinverters, optimizer boards, and combiner-box controllers often use dense mixed-component layouts. When new feeder banks are added, travel distance for the placement head can increase. That adds small timing changes in acceleration, deceleration, and part pickup synchronization. On paper the change looks minor, but in production it can amplify nozzle centering error, feeder pitch inconsistency, and part rotation offset.

Scenario 2: Scaling battery energy storage electronics to multi-shift output

Battery management systems, power conversion units, and protection modules often move to multi-shift production when capacity grows. Here, placement accuracy may decline not because the machine suddenly becomes less precise, but because thermal drift, preventive maintenance gaps, and operator-to-operator setup variation become more frequent. In this scenario, consistency across shifts matters as much as nominal placement accuracy.

Scenario 3: Adding conveyor length for large-format power electronics boards

Renewable energy products such as inverter interface boards and EV charging control assemblies often use larger PCBs. When line expansion adds buffering or inspection modules, conveyor support conditions change. Even slight sag, vibration, or clamping differences can affect how the camera identifies fiducials and how the head lands fine-pitch parts. Operators may see more edge-location error than center-area error, a sign that transport mechanics are involved.

Scenario 4: Integrating a new model mix into the same line

Many renewable energy factories expand by increasing SKU variety, not just volume. One line may build smart meter boards in the morning and gateway controllers in the afternoon. Accuracy drops here often come from recipe switching, vision library mismatch, feeder lane reassignment, or wrong nozzle grouping. The issue is operational complexity, not only hardware capacity.

Scenario comparison: what operators should watch first

The table below helps operators connect line-expansion symptoms with the most likely process area to inspect. This is also a useful checklist when discussing performance with a pick and place robot manufacturer.

Where accuracy actually starts to fall: the chain of small deviations

Operators often search for one major fault, but post-expansion accuracy loss is usually cumulative. A feeder mounted slightly off reference, a conveyor stop that varies by a fraction of a millimeter, a vision threshold that was never re-optimized for new lighting, and a nozzle with rising wear can combine into a measurable placement shift. Each deviation stays within tolerance by itself, but together they erode process margin.

This matters even more in renewable energy electronics because many boards must survive outdoor temperature cycling, vibration, and long service life. A component placed near the edge of tolerance may still pass initial inspection but fail earlier in the field. That means operators should care not only about visible rejects, but also about gradual capability loss after expansion.

A capable pick and place robot manufacturer should therefore provide more than a speed specification. Operators need access to data on repeatability under real feeder load, machine warm-up behavior, vision correction robustness, and maintenance intervals in high-mix or high-throughput scenarios.

Different renewable energy applications need different accuracy priorities

Not every renewable energy product line should react to expansion in the same way. The right priority depends on the product’s design risk, throughput target, and field-reliability expectations.

For solar electronics lines

Solar control boards usually require stable handling of mixed passive and power-related components. Operators should prioritize feeder consistency, fiducial reliability on reflective surfaces, and placement stability during long runs. If the line was expanded to raise output before peak installation season, do not assume speed tuning alone will protect quality.

For battery and energy storage assemblies

Battery systems often carry higher risk from latent defects because thermal and current loads are severe in use. Here, expansion planning should focus on calibration discipline, traceability of setup changes, and trend monitoring of fine-pitch components. A pick and place robot manufacturer serving this segment should support robust process logging and alarm thresholds that operators can interpret quickly.

For smart metering and energy management devices

These products often run in larger volumes with frequent model updates. Accuracy risk tends to come from changeover complexity and recipe control. Operators should emphasize standardized setup verification, feeder position confirmation, and machine-to-machine data consistency if expansion involves duplicate lines.

Signals operators should monitor before defects become obvious

The best time to act is before scrap rises. In expanded lines, several early signals can reveal that placement capability is slipping:

• Offset trends that slowly drift by feeder zone rather than across the full machine
• Higher re-pick or nozzle correction events after feeder additions
• First-pass yield differences between day and night shifts
• More fiducial read retries on large or darker renewable energy PCBs
• Placement variation that appears only at higher line speed or after warm-up
• Recurring errors after model changeover, especially on shared feeder families

These signals help operators separate random defects from systemic expansion-related drift. When recorded consistently, they also provide useful evidence during technical discussions with a pick and place robot manufacturer or process engineering team.

How to adapt the line by scenario instead of using one generic fix

A common mistake after expansion is applying the same corrective action everywhere, such as lowering speed for the entire line. That may hide symptoms while reducing throughput. A scenario-based response is usually more effective.

If the issue is feeder-bank expansion, focus on lane-by-lane pickup verification, nozzle condition, and part presentation angle. If the issue appears on larger boards, inspect support pins, conveyor stop repeatability, and board flatness during transport. If errors cluster around shift changes, standardize startup checks, lock calibration routines, and compare machine temperature behavior. If the problem is high-mix complexity, simplify feeder assignment rules and control recipe permissions more tightly.

For renewable energy manufacturers, this approach supports both yield and reliability. It also aligns with the data-first mindset promoted by engineering-led organizations such as NexusHome Intelligence, where process truth matters more than marketing claims.

What to expect from a qualified pick and place robot manufacturer after scale-up

Operators should not evaluate a pick and place robot manufacturer only by quoted speed or nominal placement accuracy. After line expansion, the real value comes from how well the supplier supports stable production under your exact scenario.

Look for a pick and place robot manufacturer that can explain performance under increased feeder count, longer transport paths, mixed PCB families, and multi-shift thermal conditions. Good support includes application-specific calibration guidance, feeder and nozzle validation procedures, machine log visibility, preventive maintenance logic, and training that helps operators diagnose drift early.

In renewable energy production, a strong supplier should also understand reliability demands beyond the SMT line. Placement consistency affects solder joint quality, electrical stability, and field life in devices exposed to heat, dust, vibration, and variable power loads. That broader view separates an equipment vendor from a true manufacturing partner.

Frequent misjudgments operators should avoid in expansion projects

• Assuming new accuracy issues come from the head only, while feeder mapping or conveyor timing is the real cause
• Trusting original calibration values after changing board dimensions, support conditions, or lighting
• Measuring capability only at startup rather than after thermal stabilization
• Treating all renewable energy products as one category despite different board mass, component mix, and reliability needs
• Focusing on line speed recovery before understanding where process margin has narrowed

FAQ for operators managing accuracy after line expansion

Does a faster line always mean lower placement accuracy?

Not always. The bigger risk is uncontrolled interaction between speed, feeder layout, board transport, and calibration. A capable pick and place robot manufacturer should define the operating window where both throughput and repeatability remain stable for your product mix.

Which area should operators check first after expansion?

Start with the area that changed most: feeder count, conveyor length, model mix, or shift pattern. Expansion-related accuracy loss is usually closest to the new variable introduced into the line.

Why is this especially important in renewable energy electronics?

Because many products must deliver long service life in harsh conditions. Small placement deviations can reduce long-term reliability even when short-term inspection results look acceptable.

Final guidance: match the fix to the scenario

When pick and place accuracy drops after line expansion, the best response is not a generic adjustment but a scenario-based review. Operators should identify whether the new risk comes from feeder expansion, longer conveyors, larger boards, mixed models, or multi-shift loading. From there, check the specific signals that reveal early drift and involve a pick and place robot manufacturer that can support data-backed troubleshooting.

If your renewable energy line is scaling up, use your own product mix, board size, throughput target, and shift structure to confirm what level of placement stability is truly required. The more closely the machine setup matches the application scenario, the easier it is to protect yield, reliability, and long-term manufacturing confidence.
