Can a vision AI solution detect microcracks in solar cells?

Yes, a vision AI solution can detect microcracks in solar cells, provided the inspection system produces images in which those cracks are detectable. For crystalline silicon cells, electroluminescence (EL) imaging is commonly the most useful starting point. Ordinary camera footage can reveal visible surface damage, but it usually cannot support reliable inspection of fine cracks inside an assembled module.

The purchasing decision therefore involves more than choosing an AI model. Image quality, electrical excitation, defect definitions, validation data, and inspection speed all affect the result. A credible system should demonstrate which defects it detects, under which conditions, and how its findings translate into production or maintenance decisions.

Start with the imaging method, not the AI claim

In EL inspection, an electrical current is applied to the cell or module, causing the silicon to emit faint near-infrared light. A suitable camera records that emission. Cracks may appear as dark lines, while regions with interrupted electrical connections can appear darker than surrounding active areas.

This makes EL valuable because it reveals electrical and structural features that ordinary photographs may miss. However, an EL image is not a direct measurement of every physical fracture. Crack visibility depends on its characteristics, electrical continuity, operating conditions, and the imaging setup. Some cracks produce clear patterns; others remain difficult to distinguish.

AI analyzes the resulting image to locate suspicious features, classify defects, or outline affected regions. It cannot reliably recover information that the acquisition system never captured. A sophisticated model working with blurred, poorly exposed images may perform worse than a simpler model supplied with consistent EL images.

These methods can complement each other. Thermal imaging may identify a module that deserves closer investigation, while EL helps examine its cells. Treating thermal inspection as proof that a module contains no microcracks would overstate what the method can establish.

“Minimum detectable crack” needs a precise definition

A supplier may advertise detection of extremely small cracks without explaining what was measured. Physical crack width, visible line width in an image, crack length, and electrically isolated area are different quantities. A dark feature in an EL image does not necessarily reproduce the physical dimensions of the fracture.

Ask for a detection limit tied to a defined defect and acquisition setup. The specification should describe the cell or module format, image coverage, effective resolution at the cell, exposure conditions, excitation settings, and the criteria used to label a crack.

Camera megapixels alone cannot establish that limit. If one image covers an entire module, each cell receives only part of the available pixels. Lens quality, focus, motion blur, sensor sensitivity, and image compression also affect the usable detail. Increasing image dimensions through software does not create additional captured information.

A narrow, high-contrast feature can sometimes influence pixels even when its physical width is smaller than the image sampling distance. That does not mean the system can measure its width accurately or detect every similarly sized crack. Claims of subpixel detection should therefore be supported by repeatable examples and documented conditions.

Request difficult samples as well as obvious ones: faint cracks, short cracks, features near busbars, and cracks crossing complex metallization patterns. Consistent performance on these images says more than a demonstration built around long, clearly visible fractures.

Detecting a crack is different from predicting power loss

A crack does not automatically mean a cell has lost a significant amount of output. Its effect depends on whether current can still travel through the affected region, how the crack intersects the collection structure, and whether subsequent mechanical or thermal stress changes its electrical behavior.

An inspection system should distinguish between a visible crack pattern and evidence of an electrically inactive region. They can be related, but they are not interchangeable findings. A model trained to identify dark areas may detect several types of electrical defects without accurately identifying their causes.

For purchasing purposes, separate three outputs: the presence and location of a suspected crack, the extent of any affected region, and the recommended disposition. The first two are inspection findings. The third requires an acceptance policy that reflects manufacturing requirements, customer agreements, or maintenance priorities.

Software that marks every crack as an automatic rejection can create unnecessary scrap or review work. Software that marks every small crack as harmless can overlook defects that later develop into more consequential damage. A useful solution supports configurable decision rules and retains the underlying images for review.

If a supplier also promises power-loss estimates or remaining-life predictions, request validation for those outputs separately. Good crack detection does not, by itself, establish reliable performance forecasting.

Evaluate the vision AI solution on representative modules

A convincing demonstration uses the cell technologies, module constructions, and imaging conditions expected in deployment. Models can learn visual patterns associated with their training data, including metallization layouts and background texture. Performance may change when those patterns change.

A system validated on one crystalline silicon cell design should not automatically be assumed to perform equally well on another. Changes in cell architecture, wafer characteristics, interconnection design, or module construction can alter EL appearance. Thin-film modules require their own defect definitions and validation rather than inheriting a silicon-cell inspection claim.

The validation set should include normal production variation, not just clean examples of defective and intact cells. Busbars, fingers, interconnect features, uneven brightness, and other defects can resemble crack patterns. These are essential challenge cases because they expose false alarms.

Independent reference labeling also matters. Experienced reviewers should use documented criteria, resolve disagreements, and distinguish uncertain findings from confirmed ones. Where the purchase decision depends on electrical consequences, additional electrical characterization may be needed to support the reference assessment.

Keep related images out of both training and evaluation sets. Images from the same module, repeated captures of the same cell, or near-identical samples can make performance look stronger than it will be on unfamiliar production batches. Testing on separately collected batches provides a more useful estimate of deployment performance.

Choose metrics that reveal operational consequences

A single “accuracy” figure is rarely enough. If most inspected cells are healthy, a system can achieve an apparently strong score while missing an unacceptable share of cracks. Request results that show missed defects and false alarms separately.

• Recall: Of the reference defects, how many did the system find? Report this by defect type and severity so obvious cracks do not conceal weak detection of subtle ones.
• Precision: Of the findings labeled as cracks, how many were correct? This helps estimate unnecessary review or rejection work.
• False alarms per module: How often does a healthy module trigger intervention? Cell-level results alone can hide the workload created across many cells.
• Localization quality: Does the output identify the actual defect well enough for an operator to inspect it? A module-level warning may be insufficient for root-cause analysis.
• Repeatability: Does the same module receive a consistent assessment across repeated captures within the permitted operating conditions?

Request the sample counts behind these metrics and the range of uncertainty. Results based on a small collection of severe defects provide limited evidence about rare or subtle failures.

Detection thresholds should reflect the cost of errors. Early process screening may favor higher recall because flagged samples can receive a second inspection. A final rejection station may require stronger precision to control unnecessary scrap. Compare candidate systems at thresholds appropriate to the intended decision, rather than accepting each supplier’s preferred headline score.

This follows NexusHome Intelligence’s emphasis on verifiable engineering evidence: evaluate the conditions behind a claim and the consequences of its errors, rather than treating a benchmark figure as a complete specification.

Factory inspection and field inspection need different systems

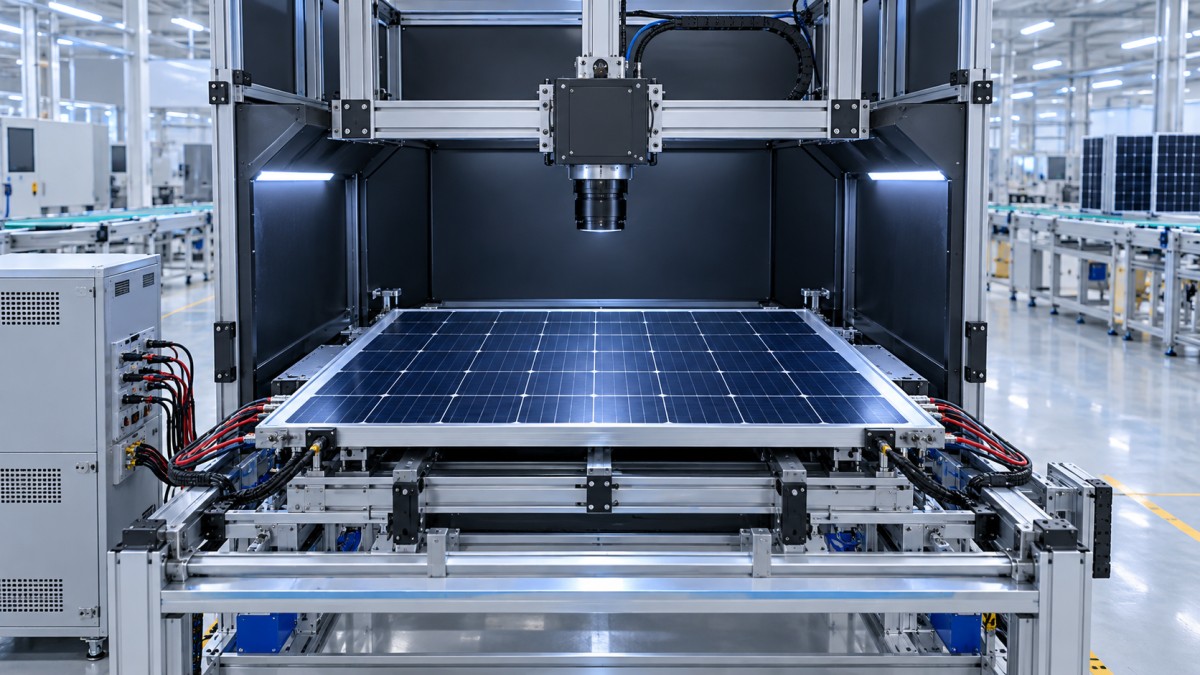

A production line offers relatively controlled positioning, electrical contact, and lighting. The main constraints are often cycle time, handling, and integration with existing quality decisions. Inspection at different process stages can also help identify where damage appears—for example, by comparing records before and after a handling or assembly operation.

Measure throughput across the complete station. Loading, contacting, current stabilization, exposure, image transfer, analysis, result reporting, and unloading all consume time. A quoted AI inference time describes only one part of that sequence. Include repeat captures and operator interventions when assessing whether the station can keep pace.

Also examine failed-inspection behavior. Poor contact, an incomplete image, or excessive background light should produce a clear inspection failure rather than a confident “pass.” The station needs a defined route for retesting or manual review.

Field EL inspection has different practical constraints. Modules require suitable electrical access and controlled excitation, while faint emission must be separated from ambient light. Specialized approaches can support daylight acquisition, but their performance needs validation under the intended conditions. Routine drone photographs alone do not provide equivalent microcrack evidence.

For large installations, a staged workflow may be more practical: use operating data or thermal surveys to prioritize suspect modules, then apply detailed EL inspection where it can inform a maintenance decision. The workflow should acknowledge that prioritization can miss cracks that have not yet produced an operational symptom.

Make the pilot an acceptance test

Before comparing proposals, define what the inspection must decide. “Detect microcracks” is too broad for a purchase specification. State the target defects, inspection stage, supported module families, allowable review workload, and action required when the system finds a problem.

Then run a pilot using representative material, including challenging healthy samples and subtle defects. Agree on reference labels and acceptance criteria before reviewing the supplier’s results. Evaluate detection performance alongside total cycle time, repeatability, and the handling of unusable images.

Review the records the system produces. Original images, defect locations, confidence scores, acquisition settings, model version, and module identifiers make results traceable. A colored overlay without the underlying image or inspection conditions provides limited support for investigating a rejection.

Finally, establish how performance will be maintained. New cell designs, camera replacements, changed exposure settings, and software updates can alter results. The supplier should provide a practical process for checking those changes against an agreed reference set.

The strongest purchase case is a system that captures the necessary evidence, detects the defects relevant to your decision, and demonstrates acceptable error rates at the required operating speed. Begin with that complete inspection requirement; the choice of AI model follows from it.
