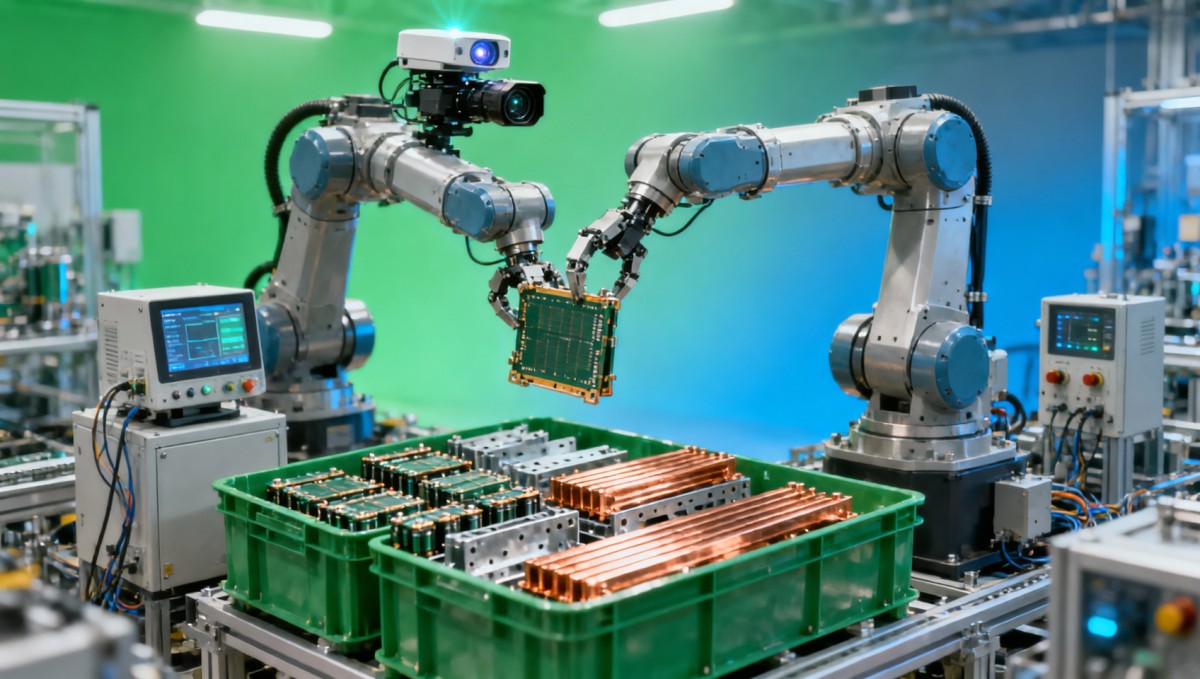

3D vision for robotic bin picking when part overlap gets messy

When 3d vision for robotic bin picking faces severe part overlap, accuracy, speed, and system resilience become critical for renewable-energy production lines. This guide explains how sensor fusion lidar and camera, machine vision for defect detection, and edge ai for smart manufacturing help operators, buyers, and decision-makers reduce picking errors, stabilize throughput, and build data-driven automation strategies that perform reliably in messy, high-mix industrial environments.

In renewable-energy manufacturing, messy bins are not a minor automation nuisance. They directly affect takt time, scrap risk, and labor efficiency in lines producing battery modules, inverter housings, busbars, stamped brackets, connector sets, and small structural parts used in solar and storage systems. When reflective metal surfaces, dark polymers, and mixed geometries appear in one bin, traditional 2D guidance often breaks down.

For research teams, plant operators, sourcing managers, and business leaders, the real question is not whether robotic bin picking is possible. The practical question is which 3D vision architecture can maintain stable picking at overlap ratios above 30%, variable part orientation, and shift-by-shift lighting changes without creating new downtime categories. That is where data-driven evaluation matters.

Aligned with NexusHome Intelligence’s principle of bridging ecosystems through data, the most reliable approach is to benchmark vision, edge processing, and integration quality under stress, not marketing demos. In renewable-energy plants, system value is proven by measurable metrics such as pick success rate, re-grasp frequency, false-positive detection, cycle time stability, and compatibility with broader industrial IoT and energy-management environments.

Why severe part overlap is a critical automation problem in renewable-energy manufacturing

Renewable-energy production rarely operates under ideal part presentation. Battery enclosure clips, cable glands, cell spacers, copper connectors, cooling plate fittings, and mounting hardware are often delivered in bulk containers to reduce handling cost. In high-mix operations, a single workstation may process 4 to 12 part variants per shift, and part overlap can exceed 40% during peak replenishment periods. That complexity raises the probability of occlusion, collision, and misidentification.

The impact is broader than missed picks. A robot that needs 2 or 3 extra attempts per successful grasp increases cycle time and creates upstream and downstream imbalance. On a line targeting 8 to 15 picks per minute, even a 0.8-second delay per cycle can reduce hourly throughput significantly. In battery and inverter assembly, unstable feeding also affects torque sequence timing, quality inspection windows, and labor allocation around semi-automated cells.

Overlap becomes more difficult when parts have reflective, matte, translucent, or low-texture surfaces. Renewable-energy factories frequently use coated aluminum, stainless steel, engineering plastics, and laminated materials. These surfaces challenge depth reconstruction and object segmentation. If dust, oil film, or packaging abrasion is present, 3D point clouds may contain holes, while 2D images may show unreliable edges.

For operators, this means more manual interventions. For procurement teams, it means higher total cost of ownership than the initial equipment quote suggests. For decision-makers, it means the business case for automation can fail if the deployed system was selected on nominal speed rather than overlap tolerance, vision robustness, and integration quality with plant data systems.

Typical overlap-related failure modes

• Incorrect top-surface recognition, where the robot targets a partially hidden part and collides with adjacent components.
• Duplicate detection of one object as two objects, common in cluttered bins with similar contours.
• Depth ambiguity on shiny or dark parts, causing unstable grasp points and repeated retries.
• Vision latency spikes during heavy scene reconstruction, which can push cycle times beyond target windows.

Operational thresholds worth tracking

Plants evaluating 3D vision for robotic bin picking should define acceptance thresholds before supplier comparison. A practical baseline for renewable-energy assembly is a first-pick success rate above 95% for standard parts, false-detection rates below 2%, and recovery to normal cycle time within 1 to 2 picks after a failed grasp. If these thresholds are not tested under real overlap conditions, performance claims are incomplete.

How sensor fusion lidar and camera improve picking accuracy in cluttered bins

Single-sensor systems can work in controlled cells, but renewable-energy factories often need more resilience. Sensor fusion lidar and camera configurations combine geometric depth information with texture, contrast, and contour detail. This helps the system distinguish partially visible parts, estimate graspable surfaces, and maintain detection quality when environmental conditions change across morning, afternoon, and night shifts.

Lidar contributes reliable distance mapping and surface topology, especially useful when object stacks are irregular. Industrial cameras add high-resolution image data for edge confirmation, orientation classification, and defect cues. When both streams are synchronized at the edge, the bin-picking system can reject risky grasp targets earlier and assign confidence scores to candidate picks. In practical terms, that reduces retries and mechanical wear.

The value of fusion is especially visible with renewable-energy parts that mix materials. Busbars may reflect strongly, molded clips may absorb light, and cable accessories may present weak geometric distinction when piled together. A fusion stack can compensate for one sensor’s blind spots with the other sensor’s strengths. This is not just a technical advantage; it is a throughput protection strategy.

Integration quality matters as much as sensor choice. Calibration drift of even 1 to 2 mm can affect grasp precision for small electrical connectors and fastener carriers. That is why buyers should ask not only what sensors are used, but also how often recalibration is needed, whether temperature drift is compensated, and how the system performs after 8 to 12 hours of continuous operation.

Comparing common vision setups for bin picking

The table below outlines how different vision configurations typically behave in renewable-energy part handling environments. The goal is not to declare one universal winner, but to show where sensor fusion creates measurable value under overlap, reflectivity, and mixed-part complexity.

For procurement and engineering teams, the table highlights a recurring pattern: a lower-cost sensor stack can become more expensive over 12 to 24 months if manual recovery, fixture redesign, and lost line time rise. In cluttered renewable-energy workflows, a fusion architecture often delivers stronger long-term value because it reduces process instability rather than merely detecting parts under ideal conditions.

Selection points buyers should validate

1. Depth accuracy at working distances common to your cell, often 500 to 1200 mm.
2. Performance on reflective aluminum, black polymer, and coated copper samples from your real parts.
3. Recalibration interval, thermal stability, and maintenance time per month.
4. Compatibility with robot controller, PLC, MES, and edge analytics platform.

Using machine vision for defect detection and pick confidence in renewable-energy parts

Robotic bin picking should not be isolated from quality control. In renewable-energy production, the same imaging stack used for part localization can also support machine vision for defect detection. This is valuable when bulk bins contain bent tabs, scratched coatings, warped molded pieces, or dimensionally unstable stampings. If defective parts are picked and fed downstream, the line may lose more time than it saves through automation.

A practical approach is to assign a confidence score to each pick candidate based on visibility, geometry, and quality indicators. For example, if an exposed connector shows abnormal edge discontinuity or if a stamped bracket appears twisted beyond an acceptable threshold, the system can skip that target and select the next candidate. This prevents avoidable jams in fastening, insertion, or welding stations.

For operators, the benefit is fewer unexplained stoppages. For sourcing teams, it creates a feedback loop on incoming part quality. If defect frequency in bins rises above a set trigger, such as 1.5% over a 3-shift window, the issue may reflect packaging design, supplier process variation, or transport damage rather than a pure automation problem. That distinction matters for root-cause analysis and supplier management.

In data-driven factories, pick logs and defect images should feed broader traceability and energy-efficiency goals. Rejecting bad parts early reduces wasted robot motion, compressed air use, and downstream rework. In high-volume battery and inverter production, these savings compound across thousands of cycles per day.

What defect-aware bin picking should evaluate

The next table shows how inspection logic can be integrated into bin-picking cells handling renewable-energy components. These are typical evaluation categories rather than product-specific claims, and they are useful during RFQ and pilot planning.

The key lesson is that machine vision for defect detection should not be treated as a separate luxury project. In many renewable-energy lines, combining picking and defect awareness in one cell gives a stronger return than deploying each function independently. It improves line consistency, supplier visibility, and maintenance planning at the same time.

Common implementation mistake

A common mistake is optimizing the model only for successful picks while ignoring low-confidence rejects. If the system accepts too many questionable parts, downstream downtime rises. If it rejects too aggressively, throughput drops. A balanced tuning process usually needs 2 to 4 weeks of sample collection, threshold adjustment, and shift-based validation before stable production release.

Why edge AI for smart manufacturing matters for latency, resilience, and energy use

Edge AI for smart manufacturing is especially relevant in renewable-energy factories because bin-picking decisions often need to be made within a narrow latency window. If image processing, point-cloud fusion, object ranking, and grasp planning depend heavily on remote compute, network jitter can degrade response consistency. In a cell targeting sub-2-second vision-to-pick execution, even short delays can create unstable robot behavior.

An edge-first architecture keeps critical inference and decision loops close to the robot while still synchronizing selected data to plant systems, quality databases, or cloud dashboards. This balances speed and visibility. It also fits NHI’s data-centric philosophy: engineering claims should be validated in live conditions, including network congestion, protocol coexistence, and plant-level interoperability with industrial IoT environments.

Renewable-energy sites increasingly combine automation with local energy monitoring and sustainability reporting. That means edge devices should not be evaluated only for AI performance. Buyers should also look at power consumption, thermal management, cybersecurity posture, and protocol compatibility. A rugged edge node drawing 25 to 60 W may be acceptable in one cell, but across 20 cells, energy use and cooling design become planning factors.

Resilience is another advantage. If a site experiences temporary network instability, local edge processing can keep the robot running and store buffered events for later upload. For plants operating 16 to 24 hours per day, this can prevent small IT disruptions from becoming production losses. It is particularly useful in facilities where automation islands must interact with MES, SCADA, energy meters, and predictive maintenance tools at the same time.

A practical edge AI evaluation checklist

• Inference latency under production load, not just lab benchmarks. A realistic target is stable response within 200 to 500 ms for candidate ranking tasks.
• Support for industrial protocols and data exchange with PLC, MES, and plant analytics systems.
• Thermal stability in cabinet temperatures that may reach 35°C to 45°C.
• Local storage and event buffering capacity for at least several hours of production data during network interruptions.

Where edge computing adds the most value

Edge processing has the highest value in cells with frequent part changes, clutter variation, or strict uptime targets. In renewable-energy component manufacturing, this often includes battery accessory feeding, cable assembly preparation, metal bracket handling, and mixed hardware kits for mounting systems. In these cases, consistent low-latency decisions are more valuable than headline compute power alone.

Procurement criteria, implementation workflow, and long-term reliability planning

Selecting 3D vision for robotic bin picking should be handled as an engineering procurement project, not only a capital equipment purchase. Renewable-energy manufacturers need to assess fit across part variability, integration effort, maintainability, and data transparency. A low initial quote may hide higher lifetime cost if the system needs frequent retraining, complex recalibration, or high operator involvement after every part revision.

A disciplined buying process usually starts with part family segmentation. Group parts by material, size, overlap behavior, and grasp method. Many plants find that 20% of part families create 80% of bin-picking difficulty. That insight helps prioritize pilot scope and prevents overengineering simple bins while underestimating the hard ones. For each family, define baseline KPIs such as pick success rate, cycle time, defect skip rate, and recovery time after a failed pick.

Implementation should also include a realistic delivery and validation plan. Depending on complexity, a pilot may take 4 to 8 weeks, followed by 2 to 6 weeks of line-side tuning. Acceptance should be tested over multiple shifts, with actual production bins, not ideal sample trays. If lighting, contamination, or packaging conditions vary by supplier, include those variables early instead of discovering them after commissioning.

Long-term reliability depends on service strategy. Plants should define who handles model updates, spare sensor inventory, on-site troubleshooting, and software rollback. In high-availability lines, waiting 5 business days for diagnosis may be unacceptable. Service-level expectations need to be discussed during sourcing, not after the first outage.

Procurement decision factors for renewable-energy factories

The table below can help buyers compare suppliers beyond demo speed. It focuses on technical and operational factors that influence total value in renewable-energy manufacturing environments.

This comparison framework reinforces a simple point: in renewable-energy manufacturing, robust data matters more than presentation quality. The best supplier is often the one that can demonstrate stable performance under messy, real-world bin conditions and document how the system behaves after weeks of production, not just during a clean demo run.

Suggested implementation sequence

1. Select 3 to 5 representative part families, including at least one difficult reflective or low-feature part.
2. Run a pilot using actual bins, target overlap levels, and production lighting conditions.
3. Measure first-pick success, cycle-time spread, defect skip accuracy, and operator interventions over multiple shifts.
4. Scale only after integration with robot, PLC, quality tracking, and edge data flow is validated.

FAQ for operators, buyers, and decision-makers

How do we know whether 3D vision is necessary instead of simpler automation?

If parts arrive with random orientation, overlap above roughly 20%, or frequent mix changes, 3D vision is usually worth evaluating. Simpler systems may still work for structured trays or low-variation feeders, but they often lose stability when renewable-energy production scales or part presentation becomes inconsistent.

What cycle-time target is realistic for robotic bin picking in these lines?

A realistic range depends on part size, grasp method, and overlap severity. Many cells target 4 to 12 seconds per completed pick cycle. More important than peak speed is consistency: low variation across 8-hour or 12-hour production windows usually delivers better line economics than a fast best-case demo.

How long does a pilot project typically take?

For one cell and several part families, a practical pilot often takes 4 to 8 weeks including sample analysis, integration, testing, and tuning. Add more time if the project includes defect detection, MES connectivity, or multiple suppliers’ packaging formats.

Which KPI should procurement care about most?

Procurement should not focus on a single KPI. The most useful set combines first-pick success rate, cycle-time stability, maintenance burden, integration effort, and support responsiveness. Together these factors reflect true operating value more accurately than nominal picks per minute alone.

For renewable-energy manufacturers facing cluttered bins, reflective materials, and rising automation demands, 3D vision for robotic bin picking becomes a strategic capability rather than a niche upgrade. The strongest results come from combining sensor fusion lidar and camera, machine vision for defect detection, and edge AI for smart manufacturing within a measurable, data-led deployment plan.

That approach aligns with NHI’s commitment to technical transparency and benchmarking over buzzwords. If your team is evaluating a new cell, retrofitting an existing line, or comparing vendors for battery, solar, or energy-storage manufacturing, now is the right time to review your real overlap conditions, acceptance thresholds, and data requirements. Contact us to discuss a tailored evaluation framework, request a customized solution path, or explore more data-driven automation strategies for renewable-energy production.
