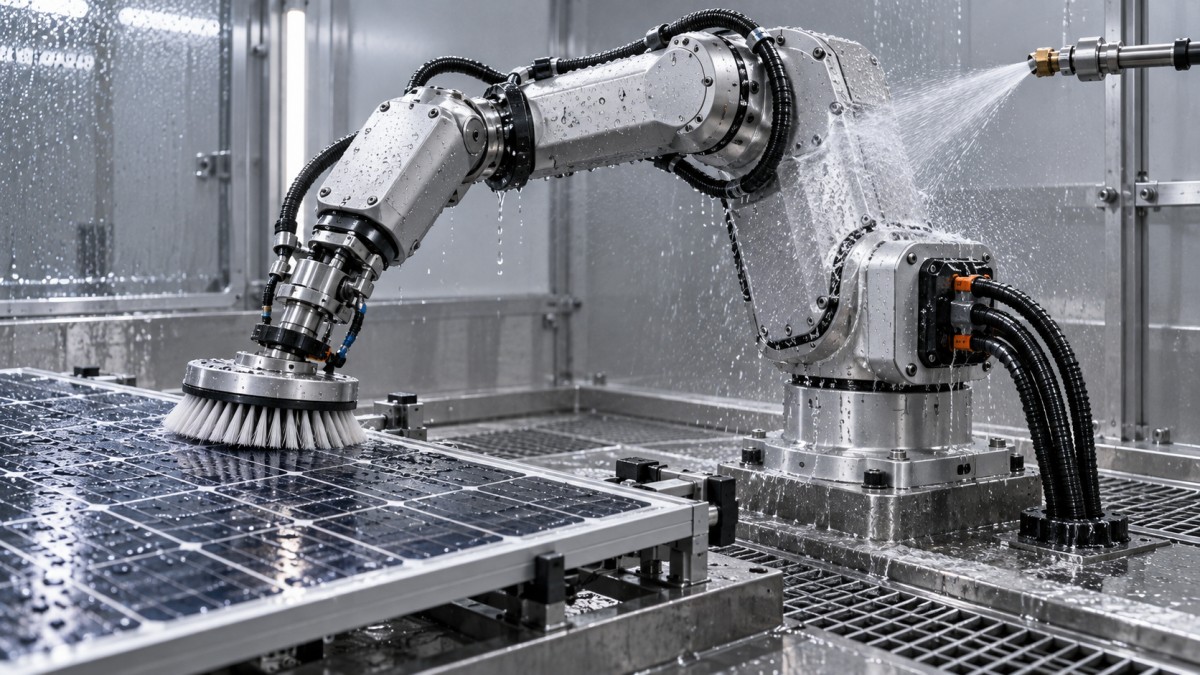

Robot Arm Ingress Testing: Verifying IP Ratings for Solar Cleaning

Robot Arm Ingress Testing: Verifying IP Ratings for Solar Cleaning

An IP rating on a datasheet does not establish whether a solar-cleaning robot arm can withstand abrasive dust and repeated water exposure in service. For technical evaluators, a robot arm ingress test should connect IEC 60529 requirements with the assembly’s actual configuration, including joint seals, cable entries, and connector interfaces. The task is to separate standardized protection claims from operational durability—and identify what the supplier’s evidence actually covers.

That distinction matters on a photovoltaic site. An arm may remain stationary during a laboratory water test but articulate repeatedly while wet during cleaning. A connector may carry an IP rating only when correctly mated, while its field installation leaves the cable termination exposed. Neither situation automatically invalidates the laboratory result. Both can make that result insufficient for deployment.

Read the IP claim before designing the test

IEC 60529 classifies protection provided by enclosures. The first characteristic numeral addresses access to hazardous parts and ingress of solid foreign objects; the second addresses harmful effects from water ingress. It does not provide a general guarantee of outdoor service life, corrosion resistance, or suitability for cleaning chemicals.

For a solar-cleaning arm, the following distinctions are more useful than treating every larger number as universally better:

In particular, IP67 does not automatically establish IP66 performance. Immersion and jet exposure challenge seals differently. Where both hazards exist, request evidence for both rather than accepting “higher IP” as an explanation. An “X” also means that the corresponding characteristic is unspecified in that designation—not that protection is necessarily absent.

Define exactly where the protected enclosure begins and ends

The first practical deliverable should be an enclosure-boundary drawing. Mark every path from the environment into a protected volume: rotary joints, housing splits, inspection covers, cable glands, connector backshells, vents, and tool interfaces. Identify separately rated compartments rather than assuming the entire arm shares one protection level.

A rated motor inside an unrated joint does not make the joint protected. Equally, an IP-rated control cabinet does not establish protection for the wrist electronics. Ask whether the claim covers the complete arm, individual components, or an assembly that requires additional installation measures.

Cable details deserve disproportionate attention. A gland’s performance depends on the permitted cable diameter, jacket condition, assembly method, and tightening requirements. A connector tested with a laboratory cable and protective cap may not represent the supplied harness. Record mating parts, unused-port closures, mounting orientation, and relevant assembly instructions before testing begins.

Solar-cleaning equipment also introduces intentional water paths. Hoses and internal fluid passages are not necessarily part of the electrical enclosure, but a leaking fitting can expose that enclosure from a direction the external spray test never considered. Assess this as a separate failure scenario.

Build a standards-based test, not an improvised hose demonstration

A useful robot arm ingress test plan identifies the applicable IEC 60529 edition and amendments, claimed protection levels, specimen configuration, conditioning, test methods, and acceptance criteria. Any relevant product standard or contractual requirement should also be identified. Resolve these items with the laboratory before sending hardware.

Dust testing: pressure conditions matter

IEC 60529 dust testing uses specified chamber conditions and test dust. Depending on the classification and applicable provisions, pressure reduction inside the enclosure may be relevant. The report should explain the selected arrangement and any connection used to extract air. “Passed dust chamber” is not enough information to reproduce or assess the test.

Standardized dust testing is not a sand-abrasion qualification. Windblown mineral particles can wear exposed shaft surfaces and sealing lips; the standard ingress test does not establish how long those surfaces will remain effective. Keep dust exclusion and abrasion durability as related but separate questions.

Water testing: preserve the defined exposure

For water-jet testing, the laboratory must control the prescribed nozzle, flow, distance, duration, and exposure arrangement. A pressure reading alone cannot establish equivalence. Close-range spray from a cleaning nozzle may produce a localized challenge unlike the standardized test, even when an operator considers it “low pressure.”

Document the arm posture and mounting arrangement. A folded arm may shield a joint that becomes exposed at full reach. Testing should follow the applicable standard provisions, with representative installation conditions and any limitations clearly recorded. Additional posture-dependent exposures can then be specified separately.

Do not casually add motion to a standardized procedure and describe the modified test as equivalent. Agree which operating states are required or permitted for the formal assessment. Use a distinct operational test to investigate wet articulation when the standard test does not establish that behavior.

Use supplementary testing to investigate service risks

The gap between an enclosure rating and field durability is where engineering judgment is needed. Consider an arm that works across dusty panels, receives splash during wet cleaning, and cools after shutdown. Seal wear, contamination at a joint, and changing internal pressure may interact. A new, stationary specimen does not answer every question in that sequence.

Supplementary testing should follow the intended cleaning method. A dry-brush system needs different emphasis from an arm carrying water nozzles. Maintenance washdown may be the dominant water exposure even when normal operation is dry.

• Motion-conditioned sealing: articulate representative joints under defined loads and travel before repeating ingress checks.
• Wet operation: exercise the intended motion profile during a separately specified spray exposure, monitoring control faults and joint behavior.
• Thermal cycling: investigate pressure changes, seal movement, and condensation risk across the project’s expected temperature conditions.
• Material exposure: assess compatibility with actual cleaning agents and, where relevant, saline contamination.

Define temperatures, cycle counts, loads, and chemical concentrations from the project requirements, not arbitrary “extreme” values. These tests supplement the IP evidence; they do not create a new IEC protection designation. If aged specimens undergo a formal retest, report the conditioning and sequence explicitly.

Decide what constitutes failure before opening the housing

“Still moves” is a weak acceptance criterion. A robot arm can complete a cleaning pass while moisture remains near a connector or contamination increases joint drag. Conversely, some water-protection classifications do not require the complete absence of water; acceptance depends on the standard’s provisions and applicable equipment requirements.

Separate formal ingress acceptance from additional functional criteria. Record baseline motion accuracy or repeatability where relevant, motor current under a repeatable load, encoder behavior, communications stability, and appropriate electrical safety measurements. Repeat suitable checks after exposure. These measurements support diagnosis but do not replace the prescribed enclosure inspection.

Plan the teardown so it does not create misleading evidence. Water trapped outside a seal can enter when a cover is removed. Document exterior drying, opening sequence, photographs, and the location of any deposits. If delayed corrosion or intermittent faults are concerns, include a defined observation period rather than declaring success immediately after power-up.

Audit the report—and its connection to production hardware

IEC publishes the standard; it does not itself certify the arm. Supplier declarations, laboratory reports, and third-party certificates are different evidence types. When independent testing is required, check the laboratory’s ISO/IEC 17025 accreditation scope for the relevant methods rather than relying on an accreditation logo alone.

Request the full report where possible. It should identify the specimen and revision, installation details, methods, conditions, results, deviations, and relevant observations. A certificate without configuration details may leave unanswered whether the tested harness, seals, and connectors match the equipment being evaluated.

This evidence-first approach aligns with NexusHome Intelligence’s focus on verifiable hardware performance: assess the measured configuration, not the strength of the marketing claim. It also means asking what changed after testing. A substituted gasket compound, revised vent, or different cable jacket can require technical review even when the model name remains unchanged.

Before deployment, close three questions: Does the report substantiate the claimed rating? Does its specimen represent the delivered assembly? Do supplementary tests address the site’s actual cleaning and maintenance exposures? If one answer is missing, record that gap explicitly. Another IP badge will not resolve it.
