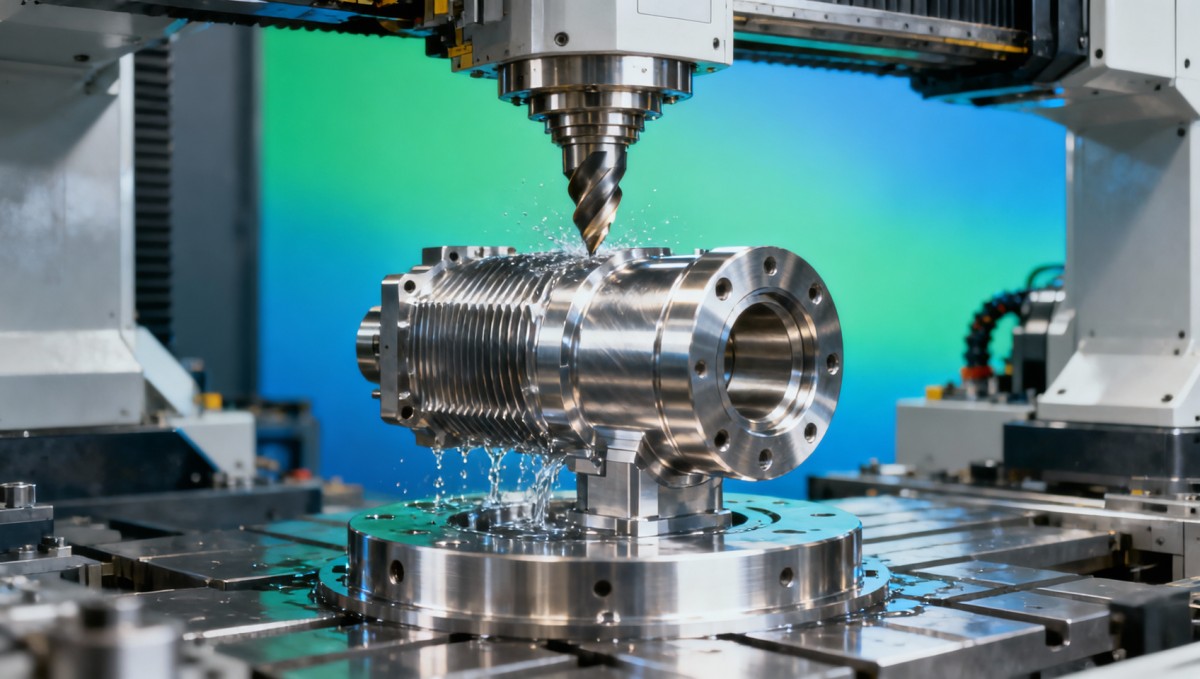

Titanium Grade 5 machinability problems that drive up cycle time

Titanium grade 5 machinability is a hidden cost driver in renewable-energy and high-spec manufacturing, where heat buildup, chatter, tool wear, and poor chip control can sharply extend cycle time. For engineers, buyers, and decision-makers comparing titanium cnc machining supplier options, understanding cnc milling chatter frequency analysis, 5 axis cnc surface finish ra, and cnc spindle runout measurement is essential to reduce scrap, stabilize throughput, and protect part performance.

In renewable-energy equipment, Grade 5 titanium is selected for parts that must survive corrosion, vibration, and long operating cycles. It appears in offshore energy hardware, hydrogen-system components, battery manufacturing tooling, sensor housings, and precision parts used in smart energy infrastructure. Yet the material’s strength-to-weight ratio does not automatically translate into production efficiency. Machining difficulty often becomes the real cost center, especially when tolerances tighten below ±0.02 mm or when surface integrity directly affects fatigue life.

For B2B buyers and plant teams, the key question is not simply whether a supplier can cut titanium. The real issue is whether they can control cycle time, maintain repeatability across batches of 50 to 5,000 pieces, and document process stability with data instead of generic claims. That is where a data-first approach aligns with the NHI mindset: engineering truth through measurable performance, not marketing language.

Why Titanium Grade 5 Creates Cycle-Time Pressure in Renewable-Energy Manufacturing

Titanium Grade 5, commonly Ti-6Al-4V, is valued in renewable-energy systems because it combines high strength, low density, and strong corrosion resistance. In offshore wind, geothermal, marine energy, and hydrogen production environments, that combination helps components survive chloride exposure, thermal cycling, and mechanical loads. However, the same metallurgical properties that improve service life also make the alloy difficult to machine at scale.

The first issue is low thermal conductivity. Heat stays concentrated at the cutting edge instead of moving into the chip. During longer tool engagement, temperature rises quickly, often accelerating flank wear within a few passes. In practical production, a process that looks stable for the first 10 parts may drift after 30 to 50 parts, especially in deep-pocket milling or thin-wall finishing.

The second issue is elastic recovery and work hardening at the cut zone. Grade 5 can spring away from the tool and then rub against it, raising friction and affecting dimensional consistency. This is especially problematic for renewable-energy components such as sealing faces, precision brackets, and pump-interface parts, where flatness, Ra value, and positional accuracy matter as much as material grade.

The third issue is chip control. Long, stringy chips can wrap around tools and disturb coolant flow. In unattended or semi-automated production cells, poor chip evacuation increases the risk of surface scratches, tool breakage, and unplanned stoppages. Even a 12% to 18% increase in machine interruption time can erase the savings from an otherwise competitive part quote.

How these problems affect renewable-energy part categories

Not every titanium part behaves the same way in production. A simple turned bushing is very different from a 5-axis impeller-like flow component or a thin structural sensor enclosure. Geometry, wall thickness, feature depth, and required surface finish all shift the machining risk profile. Procurement teams should therefore ask for part-family capability, not only material capability.

• Thin-wall housings for smart grid or sensing assemblies often suffer from chatter and distortion after roughing.
• Hydrogen valve bodies and sealing interfaces require low burr formation and stable surface finish, typically Ra 0.8–1.6 μm.
• Offshore fastening or coupling parts may involve interrupted cuts, where edge chipping becomes a major tool-life factor.
• Complex 5-axis components for energy conversion systems can experience long cycle times due to conservative step-over and repeated finishing passes.

The table below shows how common machinability issues translate into business impact in renewable-energy production programs.

The main conclusion is straightforward: in titanium Grade 5 machining, cycle time is rarely a standalone machine-rate issue. It is the combined outcome of heat control, dynamic stability, tooling strategy, and process verification. Buyers who only compare unit price often miss the hidden cost embedded in lead-time slippage and rework.

The Three Technical Signals Buyers Should Verify Before Choosing a Supplier

For renewable-energy procurement, a titanium cnc machining supplier should be assessed through measurable technical signals. Three of the most useful are cnc milling chatter frequency analysis, 5 axis cnc surface finish ra, and cnc spindle runout measurement. These metrics help buyers separate process control from sales language, particularly when parts must perform in corrosive, load-bearing, or monitored energy systems.

Chatter frequency analysis matters because titanium is sensitive to unstable cutting conditions. If a supplier can identify vibration bands, harmonics, and resonance zones during roughing and finishing, they are more likely to optimize spindle speed, radial engagement, and holder selection instead of simply slowing the program down. A slower feed may reduce immediate vibration, but it can also increase rubbing and extend cycle time by 15% to 30%.

5 axis cnc surface finish ra is equally important. In renewable-energy assemblies, surface roughness influences sealing, coating adhesion, fatigue resistance, and friction behavior. For many titanium parts, roughing may leave Ra above 3.2 μm, while functional finishing targets may need Ra 1.6 μm, 0.8 μm, or better. A capable supplier should explain not only the final Ra result, but also how they achieved it across complex contours and whether measurement is done in multiple feature zones.

Cnc spindle runout measurement is the foundation of repeatability. Even runout in the 0.005–0.015 mm range can change tool loading significantly in small-diameter titanium milling. That affects finish, tool wear, hole quality, and consistency between cavity features. For long-run renewable-energy projects, this becomes a strategic factor because maintenance schedules and spare-part planning often depend on repeatable incoming quality.

What to ask during technical qualification

A productive supplier conversation should move beyond “Can you machine titanium?” and into quantified process questions. The list below can be used by engineering teams, sourcing managers, and operations leaders during RFQ review or technical audit.

1. What spindle-speed ranges are avoided due to chatter in similar Ti-6Al-4V geometries?
2. What surface-finish range is routinely achieved in 3-axis versus 5-axis finishing?
3. How often is spindle runout checked: daily, weekly, or by machine-hour interval?
4. What tool-life monitoring method is used for batch sizes over 100 pieces?
5. Can the supplier share first-article and in-process measurement checkpoints for critical features?

Recommended evaluation thresholds

Thresholds vary by part geometry, but practical screening ranges can still help. For precision renewable-energy components, buyers often expect spindle runout control below 0.01 mm at the tool interface, documented surface finish capability at Ra 0.8–1.6 μm on critical faces, and a defined vibration-mitigation method for tools with overhangs above 3×D. A supplier that cannot discuss these limits in concrete terms may be relying on operator experience alone rather than process stability.

The following comparison table can support supplier screening when titanium cycle time is a major sourcing concern.

The difference between these two supplier profiles is usually reflected in throughput. In high-mix renewable-energy production, a data-driven supplier often shortens process debugging by 1 to 2 weeks and lowers the probability of recurring scrap events on critical titanium parts.

How Process Choices Influence Throughput, Scrap, and Surface Integrity

Cycle time in titanium machining is shaped by hundreds of small decisions, but several process choices create the biggest swings. Tool geometry, coolant method, radial engagement, machine rigidity, and setup discipline all determine whether a renewable-energy component moves smoothly through production or becomes a recurring bottleneck. This matters because titanium parts are often integrated into systems with long service expectations of 10 to 20 years.

One frequent mistake is focusing only on cutting speed. In titanium Grade 5, aggressive spindle settings without stable engagement can generate heat faster than the tool can survive. On the other hand, excessively conservative parameters may reduce immediate risk but lengthen cycle time and increase rubbing. The better approach is a balanced window built around tool diameter, overhang, feature depth, and machine dynamics.

Another major factor is toolpath design in 5-axis machining. Continuous tool engagement, smoother lead-in motion, and reduced tool retraction can improve both finish and time efficiency. For impeller-like or sculpted energy components, a well-optimized 5-axis strategy may cut finishing time by 10% to 25% compared with a less refined path, while also reducing visible blend marks between adjacent passes.

Surface integrity should not be treated as a cosmetic issue. Renewable-energy parts often operate in cyclic loads, corrosive media, or precision-sealing applications. Smearing, micro-tearing, residual tensile stress, or excessive heat tint can reduce confidence in field performance even if dimensional inspection passes. This is why process stability and final function should be evaluated together.

Key process levers that affect cycle time

• High-pressure coolant or targeted coolant delivery can improve chip evacuation and reduce heat concentration in deeper cavities.
• Shorter tool overhang, balanced holders, and rigid fixturing reduce the likelihood of chatter in thin or tall features.
• Dynamic milling strategies with controlled radial engagement help maintain stable cutting forces over long paths.
• Step-down and step-over selection directly influence both Ra outcome and machine time, especially on freeform 5-axis surfaces.
• Scheduled spindle runout checks prevent hidden instability from entering a repeat production program.

Typical control ranges for production planning

Although exact settings depend on machine and tool brand, buyers can still use typical planning ranges when discussing manufacturability. For example, critical finish targets may require Ra 0.8–1.6 μm, while non-functional surfaces may accept 3.2 μm. Tool overhang above 4×D usually deserves extra vibration review. Batch launch plans should include at least 3 checkpoints: first article, early batch verification, and steady-state production review after roughly 20 to 30 parts.

When suppliers discuss these ranges openly, buyers gain better visibility into total production risk. This supports smarter sourcing decisions than relying on piece price alone, especially for renewable-energy projects tied to scheduled installation windows or contractual maintenance commitments.

Procurement Strategy: How to Compare Titanium CNC Machining Suppliers for Renewable-Energy Programs

For enterprise buyers, titanium sourcing should be treated as a capability evaluation, not a commodity purchase. In renewable-energy manufacturing, delayed parts can affect pilot builds, field service schedules, and equipment uptime. A supplier with a lower quoted price but weak process control may create larger downstream costs through requalification, extra inspections, and delayed assembly release.

A practical procurement framework combines four dimensions: technical process control, quality assurance, delivery resilience, and communication quality. This fits the NHI philosophy of turning supplier capability into comparable, evidence-based benchmarks. Buyers should ask for process transparency in the same way they would ask for protocol compliance or energy-consumption data in connected hardware systems.

Lead time also deserves a deeper review. A stated lead time of 2 weeks may only apply to simple parts or low-volume runs. For complex titanium Grade 5 parts requiring 5-axis machining, fixture preparation, tool optimization, and first-article approval, actual timelines can extend to 3 to 6 weeks. When project schedules are tight, clarity here is often more valuable than a nominally low quote.

Documentation matters as much as equipment. Strong suppliers can show in-process controls, batch traceability, measurement plans, and a clear response path for nonconformance. That level of discipline is especially useful for energy infrastructure projects where procurement teams need confidence across multiple regions, contract manufacturers, or service partners.

Supplier screening checklist

The checklist below helps procurement and engineering teams assess whether a supplier is truly suited to titanium parts used in renewable-energy applications.

This framework helps shift procurement from reactive price comparison to controlled supplier selection. In many cases, the more reliable supplier is not the cheapest at RFQ stage, but becomes the lower total-cost option once scrap, delay, and engineering support are factored into the program.

Red flags during quotation review

• No discussion of spindle runout measurement or machine condition for precision titanium jobs.
• Unusually short lead time without explanation of fixturing, programming, and validation steps.
• Surface finish promises with no stated measurement method or critical-feature plan.
• Pricing based only on machine hours, with no mention of tool wear or inspection load.
• Generic “military-grade” or “high precision” language instead of feature-specific process details.

Implementation Guidance for Engineers, Operators, and Decision-Makers

A successful titanium machining program in renewable-energy manufacturing depends on coordination across engineering, operations, sourcing, and management. Engineers must define functional surfaces and tolerance priorities clearly. Operators need stable setups and actionable tool-life rules. Buyers require measurable supplier data. Decision-makers need visibility into total cost, not just quoted cycle rate.

For new part introduction, a phased approach works best. Phase 1 is manufacturability review, where geometry, tool access, tolerance stack-up, and surface-finish needs are aligned. Phase 2 is pilot production, usually 5 to 20 parts, with runout checks, chatter mapping, and first-article approval. Phase 3 is steady-state production, where tool replacement intervals, inspection frequency, and yield trends are monitored over time.

This structure is especially useful when titanium parts support connected renewable-energy infrastructure, such as sensorized assemblies, smart climate control hardware, or energy-monitoring enclosures. In those cases, a mechanical defect can create larger system-level problems, including seal failure, poor thermal contact, or inconsistent sensor mounting. Mechanical quality and digital system reliability are often more connected than procurement teams first assume.

The NHI perspective is relevant here: fragmented supply chains require hard verification. In machining, that means measurable evidence of stability, just as in IoT hardware it means benchmarking latency, power draw, or component drift. A data-driven supplier relationship creates a stronger bridge between manufacturing capability and enterprise decision-making.

FAQ for renewable-energy procurement and operations teams

How should we balance lower quote price against longer titanium cycle time?

Evaluate total program cost. If a lower-price supplier adds 1 to 2 extra weeks through setup instability, rework, or inconsistent finish, the downstream impact on installation and maintenance schedules may exceed the initial savings. For critical parts, ask for process controls and expected yield at launch.

What surface finish is usually acceptable for Grade 5 parts in energy applications?

It depends on function. General non-contact surfaces may accept Ra 3.2 μm, while sealing or precision interface areas often target Ra 0.8–1.6 μm. Buyers should define finish by feature, not by whole part, because that improves both manufacturability and cost control.

When is 5-axis machining worth the added cost?

It becomes valuable when part geometry includes compound angles, deep cavities, freeform surfaces, or multiple setups that would otherwise hurt accuracy. In many cases, 5-axis machining reduces repositioning, improves finish consistency, and lowers total handling time even if the hourly machine rate is higher.

What is a realistic lead time for qualified titanium parts?

For simple repeat parts, 2 to 3 weeks may be feasible. For new, complex renewable-energy components requiring tooling review, 5-axis programming, and first-article approval, 3 to 6 weeks is a more realistic planning range. Urgent schedules should include risk buffers for pilot validation.

Titanium Grade 5 machinability problems are not just shop-floor inconveniences. In renewable-energy manufacturing, they directly influence cost, throughput, quality consistency, and field reliability. Heat buildup, chatter, runout, and poor chip control can quietly extend cycle time and undermine project schedules unless suppliers manage them with measurable process discipline.

For engineers, operators, procurement teams, and enterprise decision-makers, the most effective path is to qualify suppliers using real technical evidence: chatter frequency analysis, documented 5 axis cnc surface finish ra performance, and routine cnc spindle runout measurement. That is how hidden machining risk becomes visible and manageable.

If your renewable-energy program depends on titanium components and you want a clearer, data-backed path to supplier selection, process benchmarking, or manufacturability review, contact us to discuss your requirements, request a tailored evaluation framework, or learn more solutions for stable, high-value production.
