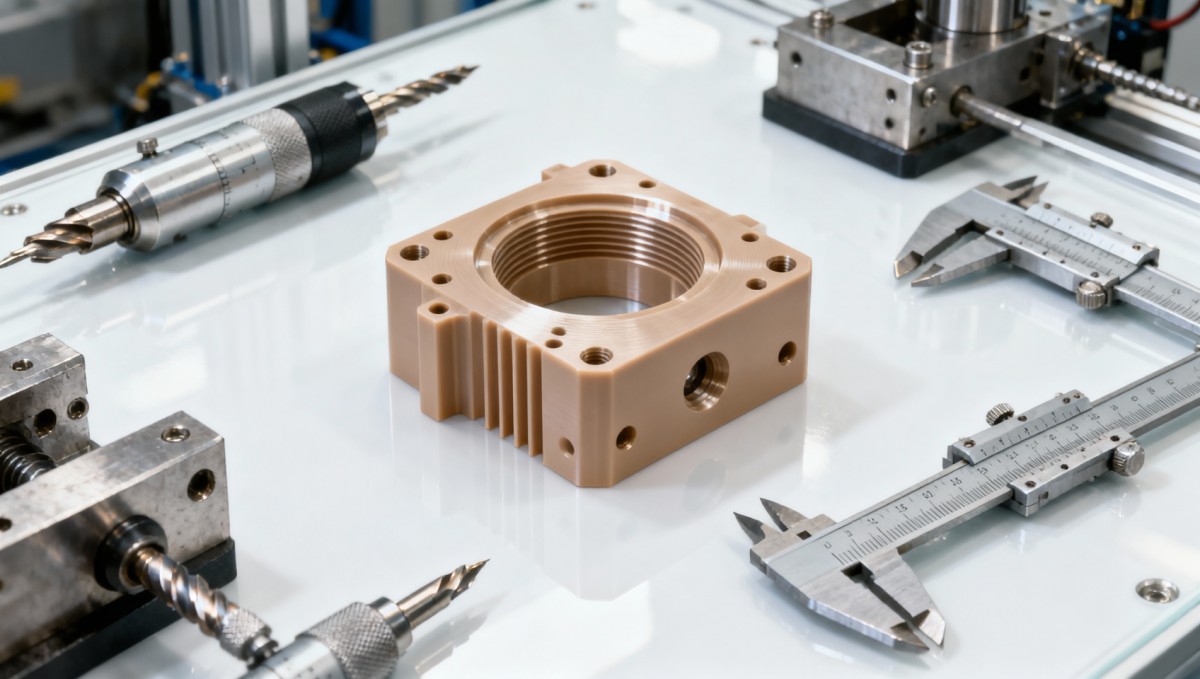

PEEK CNC machining service and the problem of heat distortion

In renewable energy systems, PEEK CNC machining service plays a critical role where thermal stability, precision, and long-term reliability directly affect component performance. Yet heat distortion remains a major challenge during high-speed cutting, especially for parts requiring medical grade PEEK sterilization test standards, micro machining tolerance limits, and tight cnc spindle runout measurement control. This article explores why distortion happens and how data-driven machining strategies reduce risk, improve consistency, and support demanding industrial applications.

Why heat distortion matters in renewable energy PEEK CNC machining service

In the renewable energy sector, PEEK CNC machining service is often selected for parts that must survive heat, vibration, chemical exposure, and electrical stress at the same time. Typical examples include insulation carriers in battery energy storage systems, sensor housings in wind power control modules, pump and valve seats in hydrogen or fluid handling assemblies, and precision supports in smart grid monitoring devices. In these applications, even a small shift in flatness or hole position can reduce sealing performance, alignment accuracy, or long-term reliability.

Heat distortion becomes difficult because PEEK is not machined like aluminum or standard engineering plastics. It combines high temperature resistance with relatively low thermal conductivity, so heat tends to stay near the cutting zone instead of dissipating quickly. During high-speed roughing, micro-feature milling, or thin-wall finishing, local temperature rise can trigger stress release, edge lifting, dimensional drift, or surface waviness. For operators, this means more in-process adjustments. For procurement teams, it means a higher risk of scrap, longer lead time, and uncertain batch consistency.

The problem is amplified when the part must fit into an energy control ecosystem where hardware and data accuracy work together. A deformed PEEK component can affect mounting force on sensors, spacing on PCB-related supports, and enclosure integrity around communication modules used in Zigbee, BLE, Thread, or Matter-based renewable energy devices. At NHI, the focus is not on marketing claims but on engineering verification, because component reliability in connected energy infrastructure depends on measurable process control rather than brochure language.

From a purchasing perspective, the key issue is not simply whether a supplier can machine PEEK. The real question is whether the supplier can control heat input across 3 stages: material preparation, cutting execution, and final inspection. A shop may show attractive unit pricing, but if spindle runout, chip evacuation, and fixture pressure are not managed, the final part can drift outside the tolerance window after 24–72 hours of stress relaxation. That risk matters in pilot lots, validation runs, and volume ramps alike.

Common renewable energy parts affected by thermal distortion

The highest-risk geometries are usually easy to identify. Thin ribs, long slots, unsupported walls, fine threaded zones, and multi-cavity pockets tend to store heat and release stress unevenly. When these designs are used in power electronics, inverter insulation, battery pack support hardware, or energy metering subassemblies, the machining strategy must be adapted before production begins.

• Thin-wall sensor brackets used in outdoor renewable monitoring systems, where wall thickness may fall in the 0.8–2.0 mm range.
• PEEK insulators near power conversion units, where hole location and flatness directly affect assembly preload.
• Valve and seal support elements in hydrogen, cooling, or fluid control modules, where distortion can change contact geometry.
• Micro machined carriers integrated with electronics, where tolerance limits may be tighter than ±0.02 mm on key surfaces.

What actually causes PEEK heat distortion during machining?

Heat distortion in PEEK CNC machining service is rarely caused by one factor alone. It usually comes from an interaction between the raw material condition, the tool path, spindle condition, and the way the part is restrained. For example, semi-crystalline PEEK can respond differently depending on prior annealing, stock thickness, and internal stress from extrusion or molding. If a shop skips pre-machining conditioning and immediately performs aggressive roughing, the stored stress may be released unevenly, causing the part to bow during or after cutting.

Tool wear is another common driver. A sharp tool cuts; a worn tool rubs. Rubbing increases friction and raises localized heat, especially in pockets, corners, and deep features where chip removal is less efficient. In practical terms, shops often need to inspect tool condition at defined intervals rather than waiting for obvious surface defects. For critical renewable energy parts, it is common to review tool life by batch, by cutting time, or by feature count, especially when the same program includes both roughing and precision finishing steps.

Spindle accuracy also matters more than many buyers expect. Tight cnc spindle runout measurement control helps reduce uneven cutter engagement. When runout grows, one flute can carry more load than the others, generating excess heat and inconsistent chip thickness. That can lead to dimension drift, poor surface integrity, and edge burrs. For small tools used in micro machining, even minor runout can materially affect feature stability, making thermal distortion more severe rather than merely cosmetic.

Fixture pressure is the fourth major cause. PEEK can deform under clamping load, then partially recover after unclamping. If the part is already warm from machining, the combination of thermal softening and mechanical stress becomes harder to predict. This is why a supplier serving renewable energy applications should explain not just tolerances, but also how it balances low-distortion workholding, cutting sequence, and cooling intervals across the full manufacturing cycle.

Four root causes procurement teams should verify

Before approving a supplier for PEEK parts used in power electronics, energy storage, or smart grid devices, buyers should request process clarity in these four areas. The goal is not to ask for proprietary know-how, but to confirm that the manufacturer uses measurable controls instead of assumptions.

This table is useful because it turns a vague machining concern into a procurement checklist. In a data-driven supply chain, the best PEEK CNC machining service partner should be able to explain how each risk is monitored, what process window is acceptable, and which features are treated as distortion-sensitive before the first sample is cut.

Why micro features increase the distortion risk

Micro machining tolerance limits make the problem more visible. A large bracket may hide minor movement, but a small PEEK carrier for a sensing or connectivity module will not. Narrow slots, micro bores, and precision pads can shift out of spec with only a limited temperature rise and very small cutter deflection. In renewable monitoring devices, where mechanical alignment affects data quality, that shift can turn into communication instability, inaccurate readings, or assembly yield loss.

How to reduce heat distortion with data-driven machining strategies

The most effective way to reduce distortion is to control heat generation rather than trying to correct warped parts at the end. In practical manufacturing, this means combining material conditioning, balanced material removal, stable tooling, and inspection checkpoints. For critical renewable energy parts, a 4-step process is often more reliable than an aggressive one-pass approach: pre-condition the stock, rough machine with stock allowance, allow stress relaxation, then finish machine and inspect. That sequence can add time, but it often lowers total cost by reducing scrap and rework.

Cutting strategy should match part geometry. Thin sections usually benefit from lighter radial engagement, lower heat build-up, and staged finishing. Deep pockets may require improved chip evacuation and tool path optimization to avoid recutting hot chips. For precision faces and sealing areas, leaving a controlled finishing allowance helps stabilize the last pass. These are not exotic methods. They are standard good practice when machining high-performance polymers for demanding environments such as battery storage, inverters, and climate-control devices used in energy systems.

Inspection timing also matters. Some distortion does not fully appear at the machine. It can emerge after the part cools or after it sits for a period. That is why dimensional verification may need to occur in 2 stages for critical parts: immediate post-machining inspection and secondary inspection after a defined stabilization window. The exact time depends on geometry and material condition, but the logic is simple: do not assume the first measurement is the final truth if the part has accumulated heat and released internal stress.

NHI’s broader view of hardware validation is directly relevant here. In fragmented energy and IoT ecosystems, one weak mechanical component can undermine system-level performance. Data-driven machining decisions support more than dimensional compliance. They support sensor stability, enclosure reliability, thermal management consistency, and long-term field service performance across distributed renewable assets.

Recommended process controls for distortion-sensitive PEEK parts

When evaluating a machining process for renewable energy components, the following control points usually provide the clearest value. They help engineers, operators, and buyers speak the same language during prototype review and pre-production approval.

• Use staged machining for thick or stress-sensitive stock, with roughing and finishing separated by a stabilization period when needed.
• Set tool management rules by time, batch, or critical feature count rather than only by visible wear.
• Check spindle condition at defined intervals, especially when micro tools or tight hole position tolerances are involved.
• Control fixture loading and support points to avoid clamping-induced deformation on thin or asymmetric parts.
• Add post-machining stabilization and secondary inspection for parts with fine flatness, sealing, or alignment requirements.

Typical control targets used in supplier discussions

The exact numbers vary by geometry and drawing requirement, but buyers and engineers often discuss machining capability using range-based targets rather than blanket promises. This keeps the conversation practical and comparable across suppliers.

These ranges are not universal specifications, but they help frame realistic supplier conversations. A reliable partner should explain which features can hold tighter limits, which ones require design adjustment, and how lead time changes when additional inspection, annealing, or validation steps are introduced.

What should buyers compare when selecting a PEEK CNC machining service?

For procurement teams, the most expensive mistake is choosing on piece price alone. In renewable energy hardware, the hidden costs of distortion include failed first articles, repeated sampling, assembly downtime, and field-risk exposure. A lower quote can quickly become a higher total cost if the supplier lacks process discipline. Buyers should compare at least 5 dimensions: material traceability, distortion-control method, inspection depth, lead time stability, and communication quality during design review.

Information researchers often need early-stage clues before requesting quotations. Good signs include clear discussion of raw stock condition, understanding of medical grade PEEK sterilization test standards when relevant to crossover applications, awareness of micro machining tolerance limits, and willingness to discuss spindle and fixture controls. Weak signs include generic claims about high precision without any explanation of how precision is preserved when heat accumulates.

Operators and technical users should pay attention to drawing review quality. A capable supplier usually flags risk areas before cutting begins. They may suggest adding stock for finishing, changing unsupported wall height, revising corner radii, or redefining datums for inspection. That type of feedback is valuable because it reduces distortion at the source. It also fits the NHI philosophy that engineering truth is built from measurable constraints, not from vague optimism.

Enterprise decision-makers should also examine supply-chain transparency. If parts will support energy storage, climate control, smart metering, or connected building infrastructure, the machining source should align with broader quality verification practices. Mechanical precision, electronics integration, and field reliability are interconnected. A supplier that can document process checkpoints, sample logic, and inspection escalation paths is easier to scale than one that only reacts after problems appear.

Practical supplier comparison checklist

Use this checklist during RFQ review, supplier interviews, or pilot order evaluation. It is designed for B2B buyers working on renewable energy hardware programs where precision polymer parts must support long service life and reliable data-enabled operation.

1. Ask how the supplier handles stress-sensitive PEEK stock before machining, especially on thick sections or complex geometry.
2. Request explanation of distortion-control strategy for thin walls, deep pockets, and micro features.
3. Confirm whether cnc spindle runout measurement control is part of routine equipment verification for precision jobs.
4. Review inspection timing, including whether a second check is used after cooling or stabilization for critical parts.
5. Compare communication speed and engineering feedback quality during the quotation and sample stage, not only final price.

Cost versus risk in renewable energy programs

A distortion-controlled process may increase prototype cost or add several working days, but that trade-off is often justified. In energy projects, a delayed module qualification, unreliable field sensor bracket, or leaking polymer seat can create downstream costs much greater than the initial machining savings. The best sourcing decision usually balances unit cost, validation speed, and the probability of repeatable batch performance over time.

FAQ: common questions about heat distortion in PEEK CNC machining service

Search intent around PEEK machining usually goes beyond basic definitions. Buyers and engineers want to know whether distortion can be predicted, whether tight tolerances are realistic, and what lead time impact should be expected. The questions below address the most common decision points in renewable energy and connected hardware projects.

How do I know if my PEEK part is at high risk of heat distortion?

Risk is higher when the design includes thin walls, long unsupported spans, deep pockets, fine threads, or micro features that need tight positional accuracy. Parts used in battery packs, inverter assemblies, energy metering devices, and outdoor sensor nodes are especially sensitive because assembly accuracy and environmental durability matter together. If your drawing combines a thin geometry with tolerances in the fine range, request an up-front machinability review before placing a volume order.

Can PEEK CNC machining service hold tight tolerances for renewable energy components?

Yes, but only when the tolerance is aligned with geometry, stock condition, and process planning. Tight tolerances are more realistic on compact, well-supported features than on long thin sections. A qualified supplier will distinguish between general dimensions and critical-to-function dimensions, then assign inspection depth accordingly. The conversation should include feature-specific capability, not a single blanket statement about precision.

Does medical grade PEEK sterilization test relevance matter in renewable energy projects?

In most renewable energy programs, sterilization itself is not the target requirement. However, the reference matters when a buyer wants a higher-grade material pedigree, tighter contamination control, or crossover manufacturing discipline from industries with strict validation habits. It is important to separate material grade discussion from the actual service environment, because over-specifying the grade can increase cost without improving field performance if the application does not require it.

What is a realistic lead time for samples and production?

For many custom PEEK parts, prototypes commonly fall into a 7–15 working day range, while production scheduling may extend depending on batch size, inspection requirements, and whether staged machining or stabilization is required. Complex renewable energy components with multiple critical dimensions, traceability expectations, or secondary inspection windows will naturally take longer than straightforward parts. Lead time should be reviewed together with process robustness, not separately.

Why choose a data-driven partner and what to discuss next

In renewable energy hardware, the value of a PEEK CNC machining service is not limited to making a part look correct on delivery day. The real value lies in repeatable geometry, stable assembly behavior, and lower risk when the part operates inside connected, data-sensitive systems. That is why NHI emphasizes transparency, technical benchmarking, and verifiable process logic across the supply chain. When ecosystems are fragmented and performance claims are easy to make, disciplined engineering evidence becomes the most useful purchasing tool.

If you are comparing suppliers for PEEK components used in energy storage, smart grid devices, climate-control hardware, or sensor-enabled infrastructure, start with the variables that most affect distortion. Confirm the stock condition, ask how heat is controlled during cutting, review cnc spindle runout measurement control, and define which dimensions require delayed reinspection. For high-risk geometries, discuss whether a 2-stage or 3-stage machining route is more appropriate than fast one-pass processing.

You can also use a technical review to avoid unnecessary cost. Many projects benefit from early feedback on wall thickness, corner radius, datum selection, finishing allowance, and inspection priority. A small design adjustment can shorten lead time, reduce scrap probability, and improve batch consistency without changing the overall function of the renewable energy assembly.

Contact us to discuss parameter confirmation, product selection, drawing review, expected lead time, custom machining plans, sample support, inspection scope, and quotation communication. If your project involves distortion-sensitive PEEK parts, micro machining features, or cross-functional hardware used in connected renewable energy systems, a data-driven review at the start can save significant time and risk later in the program.
