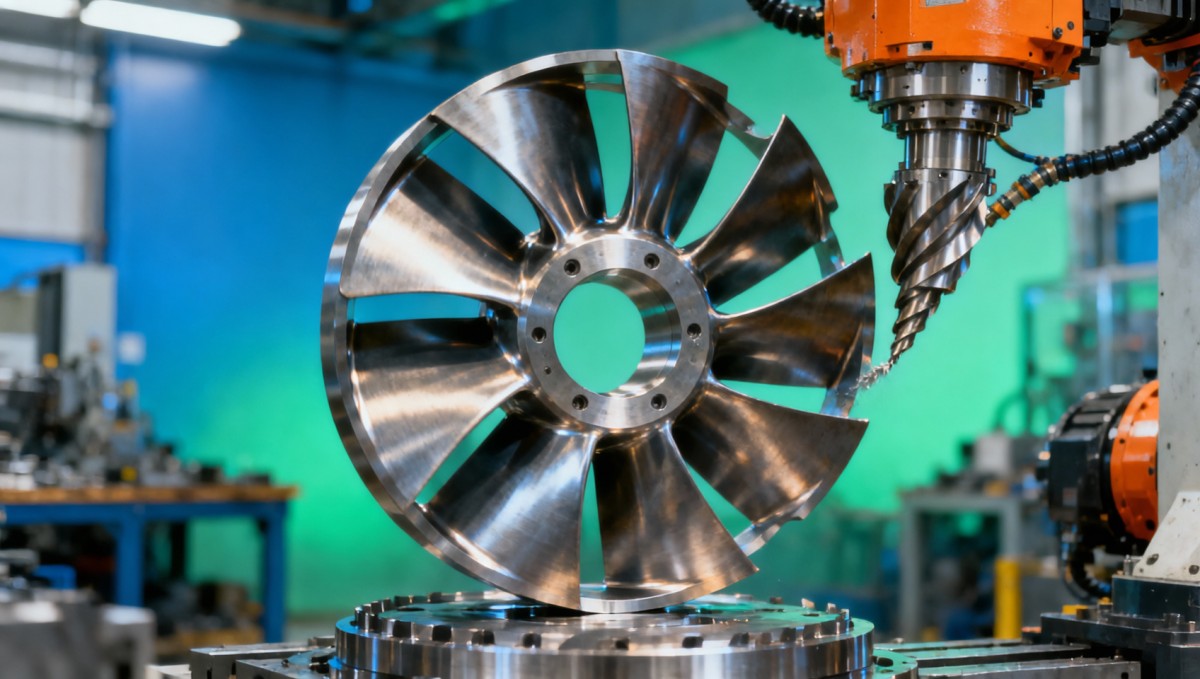

Where 5 axis CNC wins when machining aerospace impellers

In renewable-energy supply chains where efficiency, reliability, and data-driven quality matter, 5 axis cnc for aerospace impellers stands out for machining complex blades with tighter flow-path accuracy and superior 5 axis cnc surface finish ra. For buyers, engineers, and decision-makers comparing titanium grade 5 machinability, inconel 718 tool wear rate, and cnc milling chatter frequency analysis, understanding where multi-axis capability delivers measurable value is essential.

Although the title refers to aerospace impellers, the same manufacturing logic matters in renewable energy. High-speed compressor wheels, microturbine rotors, hydrogen balance-of-plant components, ORC expanders, and precision pump impellers all depend on blade geometry, repeatability, and traceable machining quality. In these applications, a small deviation in blade angle, hub transition, or surface roughness can reduce flow efficiency, shorten bearing life, or increase vibration in systems expected to run 8,000 to 20,000 hours per year.

For the audiences that NHI serves—researchers, operators, procurement teams, and enterprise decision-makers—the key question is not whether 5 axis CNC is advanced. The real question is where it creates measurable gains over 3 axis or indexed 4 axis machining, and where the premium is justified by lower rework, faster validation, and more stable field performance. In data-driven supply chains, that distinction matters more than generic claims about precision.

Why 5 axis CNC matters for renewable-energy impeller production

Impellers used in renewable-energy systems often combine thin blades, deep channels, tight hub fillets, and difficult alloys. These features are challenging because cutting access changes continuously along the blade surface. A 5 axis machine allows the tool to maintain a more favorable angle, reducing long tool overhang and improving stability. In practical terms, that can lower chatter risk when machining titanium Grade 5, stainless duplex grades, or nickel-based alloys used in corrosive and high-temperature energy environments.

This matters especially in distributed energy and smart infrastructure projects, where uptime and energy efficiency are directly linked to lifecycle cost. A poorly machined impeller may still pass a visual inspection, yet produce higher turbulence, reduced pressure efficiency, and faster seal wear. In systems integrated into data-monitored buildings or microgrids, even a 2% to 4% efficiency drop becomes visible at the asset-management level.

From a manufacturing perspective, 5 axis CNC helps in three ways: fewer setups, better tool orientation, and more consistent surface generation. Fewer setups reduce cumulative positional error. Better orientation shortens tool stick-out, which improves rigidity. More consistent surface generation reduces secondary polishing, hand blending, and geometry distortion. These are not cosmetic gains; they affect qualification time, balancing behavior, and repeatability across batches of 10, 100, or 1,000 parts.

For NHI’s data-first view of industrial sourcing, machining claims should be evaluated like any other hardware benchmark. Buyers should ask for CMM reports, surface roughness data, blade profile deviation, spindle load traces, and process capability evidence. Terms such as “complex machining capability” are too vague for serious procurement in renewable-energy supply chains.

Where geometry complexity changes the economics

The value of 5 axis machining rises sharply when blade count exceeds 7 to 9, when blade height-to-thickness ratio increases, or when back-swept and splitter blade designs are used. In these geometries, collision avoidance and toolpath continuity become more important than raw spindle speed. Shops limited to simpler setups often compensate with extra electrodes, custom fixtures, or manual finishing, which increases lead time by 20% to 40%.

Typical decision triggers

• Blade surfaces require Ra 0.8–1.6 μm directly from machining to reduce polishing steps.
• Profile tolerance on critical flow paths needs to stay within ±0.03 mm to ±0.08 mm.
• Part diameter ranges from 80 mm to 450 mm with deep, narrow channels.
• Material removal must remain stable in titanium Grade 5 or Inconel 718, where tool wear accelerates quickly.

Where 5 axis CNC clearly outperforms 3 axis and indexed machining

Not every impeller requires continuous 5 axis motion. If a design has open access, moderate blade curvature, and loose finish requirements, indexed machining may still be commercially sensible. However, once the part includes undercut-adjacent transitions, tightly curved blade roots, or high-efficiency aerodynamic surfaces, 5 axis CNC starts to deliver more than convenience. It becomes a process-control advantage.

In renewable-energy applications, this advantage is strongest for turbo-expanders in waste heat recovery, hydrogen gas handling rotors, advanced pump impellers for thermal loops, and compact compressor wheels integrated into intelligent HVAC energy platforms. These components are often tied to digital monitoring systems where vibration, temperature, and flow deviations are tracked over time. Better machining quality creates a cleaner operating baseline for those connected systems.

A useful way to evaluate process fit is to compare machining routes against the true downstream cost drivers: balancing, inspection, rework, and field stability. A lower piece price from a simpler machine route can disappear if the part requires 2 extra finishing steps, 1 additional fixture cycle, or repeated balancing corrections.

The table below compares where each machining approach tends to fit in renewable-energy component sourcing.

The main conclusion is practical: when the cost of geometric error is high, 5 axis CNC usually wins on total value, not only on dimensional capability. This is especially true when the component will be monitored in service and expected to meet strict reliability targets over multi-year operating cycles.

Signs that indexed machining is no longer enough

• Repeated hand polishing changes blade-to-blade consistency and delays qualification by 3–7 days.
• Balancing correction mass is consistently higher than expected after machining.
• CMM reports show profile drift at blade roots or trailing edges after repositioning.
• Tool wear spikes because long-reach cutters are required to reach channel features.

Material challenges: titanium Grade 5, Inconel 718, and chatter control

Material selection in renewable-energy rotating equipment is often driven by corrosion, temperature, weight, and fatigue life. Titanium Grade 5 is valued where low mass and high strength improve rotor response or reduce start-up load. Inconel 718 appears in high-temperature or aggressive environments where oxidation and creep resistance matter. Both materials are machinable, but neither is forgiving.

Titanium Grade 5 has relatively low thermal conductivity, which means heat concentrates near the cutting zone. If tool engagement becomes unstable, localized temperature rises quickly and edge wear accelerates. Inconel 718 is even more demanding because work hardening and high cutting forces combine to increase tool wear rate. In complex blade channels, that creates a strong case for 5 axis tool orientation, because the machine can keep the contact point more stable and reduce tool deflection.

Chatter frequency analysis also matters more than many buyers realize. A supplier may quote acceptable tolerances while ignoring process stability. Yet chatter leaves surface waviness, inconsistent scallop patterns, and subsurface stress effects that can influence fatigue behavior. For energy-system rotors running at 12,000 rpm, 25,000 rpm, or higher, these details are not secondary.

The table below highlights practical material and process considerations that procurement teams should review during supplier qualification.

A disciplined supplier should be able to discuss not only feeds and speeds, but also tool engagement strategy, radial step-over, finishing allowance, and how chatter is mitigated across different blade regions. That level of process transparency aligns with NHI’s broader principle: engineering trust should come from measurable evidence rather than polished sales language.

Practical thresholds for RFQ review

When evaluating impeller suppliers for renewable-energy applications, an RFQ should request at least 4 process checkpoints: incoming material traceability, in-process dimensional verification, final CMM report, and surface finish documentation. For more demanding rotors, adding a balancing record and a basic chatter mitigation note can significantly reduce sourcing risk.

• Ask for sample values or capability ranges rather than marketing adjectives.
• Review whether final finishing is machine-generated or hand-blended.
• Confirm if critical blade regions are inspected 100% or by sampling.

How buyers and engineers should evaluate a 5 axis supplier

A capable 5 axis supplier is not defined only by machine ownership. In renewable-energy sourcing, what matters is the complete control chain: CAM strategy, fixturing logic, metrology, process repeatability, and communication discipline. A supplier with 2 high-end machines but weak inspection may be a worse fit than a shop with 6 stable machines and better process documentation.

Procurement teams should also separate prototype capability from production capability. A shop may successfully machine 1 demonstration impeller, yet struggle to maintain blade consistency across 30 or 100 units. This is a frequent blind spot in energy projects, where pilot success is mistakenly treated as proof of supply-chain readiness.

For operators and engineering users, the key concern is functional repeatability. Can the supplier maintain similar flow-path quality from batch to batch? Can they control edge break, blade thickness, and hub concentricity without excessive manual touch-up? For enterprise decision-makers, the question becomes commercial resilience: can this supplier deliver predictable lead times of 3–6 weeks for prototypes and 6–10 weeks for serial orders without hidden quality drift?

The checklist below can help structure supplier comparison in a way that is technical enough for engineering teams and practical enough for procurement review.

Five-point qualification checklist

1. Verify machine envelope and axis configuration against the actual part size and blade depth, not just the catalog specification.
2. Request evidence of previous machining in titanium, stainless, or nickel alloys with similarly thin blade sections.
3. Review metrology capability, including CMM access, probe strategy, and how profile deviation is reported.
4. Ask how surface finish Ra is measured on curved blade areas and whether values come from representative critical zones.
5. Confirm process change control, especially after tool substitution, fixture updates, or CAM optimization.

Common sourcing mistakes

• Comparing only unit price without including balancing, inspection, and rework costs.
• Accepting generic “5 axis capable” claims without sample geometry evidence.
• Ignoring how digital quality records will integrate with smart-factory or asset-traceability systems.
• Assuming surface gloss equals acceptable aerodynamic finish.

This data-oriented approach fits closely with NHI’s manifesto. In fragmented industrial ecosystems, procurement confidence depends on verified performance. Whether the component is a smart HVAC turbine wheel or a precision rotor in a renewable-energy process line, benchmarked evidence is the most reliable bridge between manufacturing hubs and global buyers.

Implementation, inspection, and lifecycle value in connected energy systems

The true benefit of 5 axis CNC is often realized after machining is finished. Better blade consistency reduces balancing adjustment, speeds first-article approval, and creates a more stable performance baseline once the part enters service. In connected renewable-energy systems, where sensors monitor vibration, temperature, current draw, and flow, higher initial machining quality supports cleaner operational data.

That is especially relevant in NHI’s vision of data-driven industrial ecosystems. A component should not be evaluated only by whether it fits the drawing on day 1. It should also be judged by whether its manufacturing quality helps digital monitoring systems produce actionable insights over 12, 24, or 60 months. A noisy mechanical baseline makes diagnostics harder, increases false alarms, and weakens predictive maintenance value.

Implementation planning should therefore link machining decisions with downstream validation. For example, if an impeller is used in a smart energy platform, quality data from machining can be mapped to later operating data. Surface finish, profile accuracy, and balancing results can become part of a digital component record, improving traceability when field issues arise.

The workflow below shows a practical implementation model for renewable-energy buyers who want both precision manufacturing and data traceability.

For buyers building long-term supplier partnerships, this approach changes the conversation from “Who can machine this part?” to “Who can supply a measurable, traceable, and repeatable manufacturing result?” In renewable-energy markets shaped by efficiency targets and connected infrastructure, that is the more strategic question.

FAQ for procurement and engineering teams

Is 5 axis CNC always necessary for renewable-energy impellers?

No. For simpler open impellers with moderate curvature and relaxed finish requirements, indexed machining may be sufficient. The need becomes stronger when blade geometry is deep, narrow, highly curved, or linked to tight profile and Ra targets.

What lead time is typical?

A realistic range is often 3–6 weeks for a prototype and 6–10 weeks for repeat production, depending on alloy availability, inspection depth, and balancing requirements. Very complex Inconel parts may take longer because tool wear and process tuning are more demanding.

Which quality records should be requested?

At minimum, request material traceability, dimensional inspection, critical profile verification, and surface finish data. For high-speed energy applications, adding balancing records and process notes on chatter control is advisable.

Where 5 axis CNC wins is not in abstract complexity, but in applications where blade geometry, material difficulty, and downstream performance make process stability valuable. In renewable-energy manufacturing, that includes components where flow efficiency, rotor balance, and service-life predictability matter as much as part geometry itself. If your team is evaluating impeller sourcing, turbine-wheel production, or precision rotating components for connected energy systems, a data-based qualification process will reduce both technical and commercial risk. Contact us to discuss your machining requirements, compare supplier capability, or get a tailored evaluation framework for your next project.
