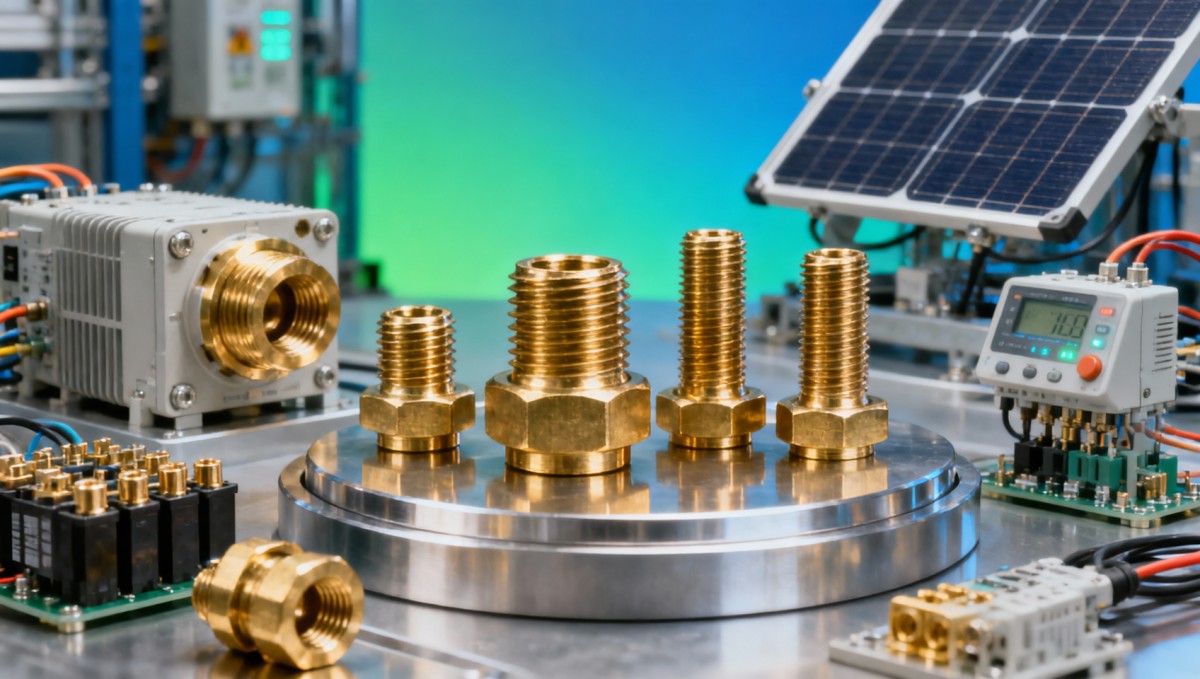

Custom brass CNC parts often fail at threads before dimensions

In renewable-energy hardware, custom brass CNC parts often fail at threads before dimensions ever drift, turning a small machining flaw into downtime, leakage, or field replacement. For engineers, buyers, and operators comparing heavy duty cnc machining supplier options, this article explains why thread integrity matters more than nominal tolerance, how cnc spindle runout measurement and precision grinding surface roughness affect performance, and what data-driven sourcing reveals beyond standard brochures.

In solar inverters, battery energy storage systems, hydrogen balance-of-plant assemblies, and smart metering nodes, threaded brass parts are often small in size but critical in function. They seal coolant paths, secure sensor bodies, hold busbar interfaces, and connect pressure fittings exposed to vibration, heat cycling, and outdoor contaminants. A part can pass dimensional inspection and still fail early if thread flank quality, burr control, concentricity, or surface finish are not tightly managed.

For NexusHome Intelligence, this topic fits a wider supply-chain reality: brochures often highlight tolerance bands, material labels, and lead times, but not the process variables that determine field reliability. In renewable-energy deployments, where service intervals may stretch from 12 to 36 months and downtime can affect both power continuity and maintenance budgets, buyers need machining data rather than generic claims.

Why thread failure appears earlier than dimensional drift in renewable-energy assemblies

Threaded brass CNC parts in renewable-energy systems rarely fail because the overall part length moved by 0.02 mm or the outer diameter shifted slightly within print limits. More often, failure begins at the thread root, crest, pitch, or lead-in. That is because threads localize stress. A minor tool wear issue, spindle runout, plating buildup, or torn grain at the first 2 to 3 turns can convert a nominally acceptable part into a leak path or stripped interface during installation.

Brass is widely selected for conductivity, corrosion resistance, machinability, and compatibility with fittings used in cooling loops, low-voltage power distribution, and instrumentation ports. Yet its machinability can create false confidence. A supplier may achieve fast cycle times and visually clean parts while still leaving smeared flanks, rolled burrs, or inconsistent thread engagement. In vibration-prone environments such as rooftop solar trackers, battery enclosures, or wind-control cabinets, those defects show up quickly.

In field conditions, the first symptom is often not “thread failure” in a lab sense. It may appear as coolant seepage after 200 to 500 thermal cycles, torque scatter during assembly, galling when mating with stainless components, or loss of clamp force after transport. These issues are expensive because the failed brass part is usually cheap, but the labor to access it inside an inverter cabinet or BESS rack is not.

For buyers and technical decision-makers, the key lesson is simple: dimensional compliance is necessary, but thread integrity is the more predictive quality marker for installed reliability. When evaluating a heavy duty cnc machining supplier, asking only for CMM reports on major dimensions misses the real risk center.

Where thread-sensitive brass parts are used

Renewable-energy hardware uses custom brass CNC parts across multiple subsystems. The same thread defect can create different failure modes depending on the application. The table below maps common use cases to the dominant thread-related risk.

The pattern across these applications is that the thread is both a mechanical and functional interface. Even when the body geometry remains within ±0.01 mm to ±0.05 mm, thread defects can compromise sealing, retention, conductivity, or serviceability long before macro dimensions show drift.

The machining variables that decide thread integrity

Three process variables matter disproportionately in custom brass CNC parts: spindle runout, tool condition, and final surface state. Many suppliers discuss tolerance broadly, but renewable-energy buyers should push for process-specific data. A thread that looks acceptable under low magnification may still have lead error, eccentricity, or roughness patterns that accelerate leakage or assembly problems.

Cnc spindle runout measurement is one of the clearest indicators. If spindle runout is poorly controlled, the cutting tool does not track the thread path concentrically. On small brass fittings, even runout in the 0.005 mm to 0.015 mm range can influence pitch consistency and crest uniformity, especially for fine threads or short engagement lengths under 8 mm. That does not guarantee failure, but it increases process variation and weakens repeatability across batches.

Precision grinding surface roughness also matters more than many purchasing teams expect. When mating surfaces or sealing faces sit close to threaded features, roughness values such as Ra 0.4 to 0.8 µm can provide better sealing stability than a loosely controlled Ra 1.6 µm or above. On the thread itself, uncontrolled roughness increases friction scatter, which means the same target torque can produce different clamp loads in installation.

Another overlooked factor is burr management at thread starts and cross-holes. Renewable-energy equipment often includes brass parts with intersecting internal passages for coolant, gas, or sensor exposure. If the deburring process is inconsistent, loose fragments can migrate into pumps, valves, or MEMS sensing chambers. For IoT-enabled energy equipment, that means a machining defect can become a system-level reliability and data-quality problem.

Critical process checks buyers should request

• Spindle runout verification at scheduled intervals, such as every 1 to 2 shifts for high-volume parts or at each setup change for low-volume custom jobs.
• Tool-life control by part count rather than operator judgment alone, especially for threads below M8 or fine-pitch internal profiles.
• Thread inspection including GO/NO-GO gauges, visual flank inspection, and sampling of pitch diameter or profile when the application is sealing-critical.
• Surface roughness measurement on sealing faces and, where required, on adjacent machined surfaces that affect gasket or O-ring compression.
• Deburring and cleaning validation for intersecting drilled passages, particularly in liquid-cooled inverters and BESS thermal management modules.

Thread quality indicators versus brochure indicators

Many datasheets emphasize material grade, nominal tolerance, and monthly output capacity. Those are useful, but they are not the fastest predictors of thread-related field failure. For renewable-energy hardware, buyers should compare process controls that map directly to sealing, torque consistency, and service-life stability.

The main takeaway is that process capability must be translated into measurable checks. A heavy duty cnc machining supplier that can show setup discipline, roughness data, and thread-specific inspection records is usually a lower-risk choice than one offering only generic precision claims.

How renewable-energy buyers should qualify a heavy duty CNC machining supplier

Supplier qualification should align with the operating reality of renewable-energy equipment. An outdoor inverter in a hot climate may face ambient conditions from -20°C to 50°C. A BESS cabinet may experience vibration during shipment, repeated service openings, and continuous thermal load. A thread that survives bench assembly once is not enough. Buyers need evidence that the supplier can hold thread quality across volume, time, and environmental stress.

The first step is application classification. A brass threaded insert for a non-pressurized electronics enclosure does not require the same control as a coolant fitting or gas-adjacent component. Group parts into at least 3 risk classes: structural fastening, sealing-critical, and conductivity-critical. That helps procurement avoid over-specifying low-risk parts while tightening controls where failure cost is high.

The second step is pilot validation. Instead of moving directly from drawing approval to mass order, buyers should request a pilot lot such as 30 to 100 pieces, depending on complexity, and validate torque behavior, fit, leakage resistance, and visual burr condition. For custom brass CNC parts used in liquid paths, practical tests such as pressure hold, repeated assembly cycles, and post-vibration inspection often reveal more than dimensional reports alone.

The third step is production surveillance. Renewable-energy programs often run for years, and quality drift usually occurs after initial approval. A reliable supplier should support periodic review of tool replacement intervals, first-article checks after setup changes, and batch traceability that links inspection data to shipment date. This matters for both procurement teams and field service managers.

A practical qualification checklist

1. Define the function of the thread: sealing, fastening, electrical contact, or mixed purpose.
2. Set critical metrics: torque range, roughness target, leak acceptance, engagement length, and cleaning requirement.
3. Request pilot samples with inspection data, not just a dimensional summary.
4. Run 3 to 5 installation cycles on mating hardware to detect torque scatter or cross-thread tendency.
5. Review process controls for spindle runout, tool wear, deburring, and final cleaning.
6. Approve mass production only after the pilot lot passes both bench and application-specific verification.

Procurement priorities by stakeholder

Different teams evaluate the same part through different lenses. The table below helps align engineering, operations, and sourcing before supplier selection.

This cross-functional view supports better sourcing decisions. In many renewable-energy programs, a slightly higher unit cost is justified if it reduces field replacement visits, warranty exposure, or startup delays caused by leaking or stripped threaded interfaces.

Data-driven sourcing and implementation: what NHI-style evaluation should include

NexusHome Intelligence advocates a data-first approach because renewable-energy systems are now deeply tied to connected infrastructure. A small brass CNC part may sit inside a smart relay module, an energy meter, or a climate-control assembly that feeds operational data into larger building or grid systems. If the hardware interface fails, the digital layer loses value. That is why sourcing should connect machining quality with system-level performance.

A useful evaluation model includes 4 layers: drawing compliance, process stability, application validation, and lifecycle risk. Drawing compliance checks dimensions and material. Process stability examines spindle runout, tool wear, and roughness. Application validation tests the part in pressure, assembly, or vibration contexts. Lifecycle risk considers service intervals, replacement accessibility, and environmental exposure over 12, 24, or 36 months.

For organizations sourcing across Asia and deploying globally, this method also helps compare suppliers using a common framework. One supplier may offer shorter lead times; another may provide stronger process reporting. Standardized evaluation reduces dependence on marketing language and gives procurement teams a clearer basis for total-cost decisions.

Implementation should not be complex. Even a mid-sized renewable-energy OEM can build an effective sourcing workflow by defining thread-critical parts, assigning acceptance criteria, and reviewing evidence at each order stage. The goal is not bureaucracy; it is fewer avoidable failures in the field.

Recommended implementation flow

• Stage 1: Identify thread-critical brass parts in cooling, sensing, metering, and enclosure-sealing assemblies.
• Stage 2: Define measurable criteria such as Ra target, torque window, leak threshold, and inspection frequency.
• Stage 3: Compare suppliers using pilot-lot data rather than only RFQ pricing and nominal tolerance claims.
• Stage 4: Monitor recurring production with periodic audits every quarter or by agreed batch interval.

Common sourcing mistakes to avoid

The most common mistake is assuming that a passed dimensional report equals a passed functional interface. Another is treating all brass threads as low risk because the material machines easily. A third is skipping pilot testing when the part is small and inexpensive. In renewable-energy hardware, the replacement context matters more than the component price. A $2 fitting can trigger hours of service labor.

It is also risky to specify surface finish too vaguely. If the drawing says only “machined finish,” suppliers may interpret acceptable roughness differently. Where sealing or torque repeatability matters, define target bands. Likewise, if the assembly includes IoT-enabled monitoring hardware, cleaning requirements should be explicit to prevent contamination-related sensor issues.

FAQ for engineers, buyers, and operators

How should we prioritize thread inspection on custom brass CNC parts?

Start with parts that are sealing-critical, pressure-adjacent, or difficult to replace after installation. Those parts should receive more than basic GO/NO-GO checks. Where possible, add periodic profile verification, burr inspection, and mating trials across at least 3 sample pieces per lot or per setup change.

What is a realistic lead time for qualified renewable-energy brass parts?

For custom parts, sample development may take 1 to 3 weeks, while production often falls in the 2 to 6 week range depending on complexity, finishing steps, and order volume. Shorter quotes are possible, but speed should not replace pilot validation if the thread is functionally critical.

Does better surface roughness always mean better performance?

Not always. Roughness should match function. Extremely fine finish may add cost without benefit on non-critical faces. But on sealing surfaces or torque-sensitive interfaces, a controlled range such as Ra 0.4 to 0.8 µm is often more useful than a generic finish claim. The key is consistency, not just the lowest number.

Why does data-driven sourcing matter for renewable-energy programs?

Because these programs combine mechanical hardware, electrical systems, and connected monitoring. A machining defect in a threaded brass part can cause leaks, electrical instability, sensor faults, and maintenance visits. Data-driven sourcing helps prevent those downstream costs by focusing on process evidence instead of marketing language.

Custom brass CNC parts in renewable-energy equipment often fail first at the thread, not in the headline dimensions shown on a drawing. The most reliable sourcing decisions come from evaluating thread integrity, cnc spindle runout measurement, precision grinding surface roughness, burr control, and application-specific testing as one linked quality system.

For engineers, procurement teams, operators, and business leaders, the practical advantage is clear: better machining data leads to fewer leaks, more stable assembly torque, lower service risk, and stronger lifecycle economics. If you are reviewing supplier options for custom brass CNC parts in solar, storage, or smart energy hardware, now is the right time to move beyond brochure claims and assess what the process can actually prove.

To discuss a data-driven qualification approach, compare machining risk points, or explore a custom sourcing framework for renewable-energy hardware, contact us to get a tailored solution and deeper technical guidance.
